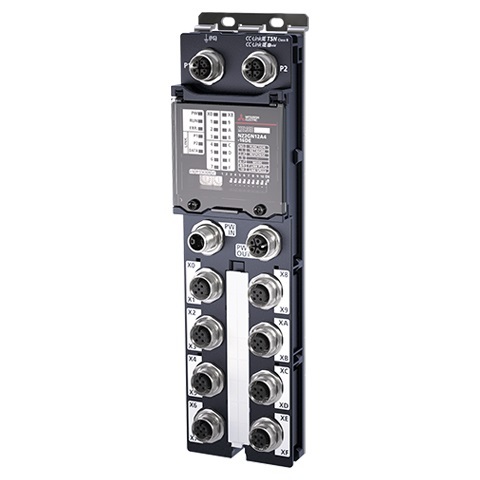

“Mitsubishi NZ2GN12A4-16DE: 16 Pt, 24V DC Waterproof Connector, 0-70ms”
$1,723.20
16 points, 24 V DC, response time 0Â…70 ms, negative common
| Series: | CC-LINK IE TSN |
| Type: | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Occupied Stations: | 1 |
| Integrated Digital Outputs: | 16 |
| Output Type: | TRANSISTOR |
| Output Logic: | SINK |
| Rated Load Voltage (VDC): | 24-Dec |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,11 |
| Depth (mm): | 37,5 |
| Weight (kg): | 0,41 |
| Width (mm): | 63 |
| Height (mm): | 238 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 10124-43-3, 540-97-6, 541-02-6, 7439-92-1, 556-67-2 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| UKCA: | COMPLIANT |
