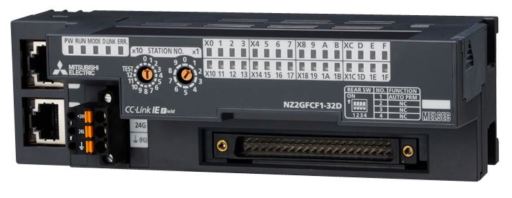

“Mitsubishi NZ2GFCF1-32D, 32 Point 24V DC Response 0-70ms, 40-Pin Connector”
32 points, 24 V DC, response time 0Â…70 ms,
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | REMOTE AC INPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 68 |
| Weight (kg): | 0,4 |
| Width (mm): | 200 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 120 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 4 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Occupied Stations: | 1 |
| Integrated Digital Inputs: | 16 |
| Rated Input Voltage (VAC): | 100-120 |
| Wiring: | SPRING CLAMP |
| Int. Current Consumption (A): | 0,13 |
| REACH Substance CAS Number: | 7439-92-1 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
