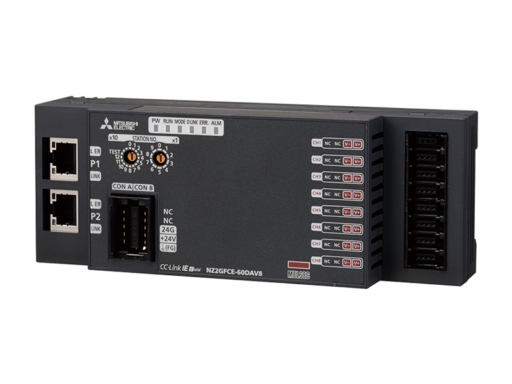

“Mitsubishi NZ2GFCE-60DAV8 8-Ch, 1ms/Ch Converter, -10-10V DC, e-Con Sensor”
8 channels, -10Â…10 V DC; conversion speed, 1 ms/ch;
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | REMOTE ANALOG OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 47 |
| Weight (kg): | 0,22 |
| Width (mm): | 175 |
| Height (mm): | 65 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Occupied Stations: | 1 |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,33 |
| European Order Code: | 312915 |
| Global Order Code: | 1WF316 |
| Product Hierarchy: | IAD50305 |
| Class Description: | FA-MOD PLC Analogue I/O Module |
| External Material Group: | Standard Material |
| Logistic Class: | C |
| Gross Weight: | 0.345 KG |
| Volume: | 2.277 CDM |
| Length: | 23 CM |
| Width: | 9 CM |
| Height: | 11 CM |
| Commodity Code: | 85389099 |
| Country of Origin: | JP |
| Selling Status: | Standard |
| Integrated Analogue Outputs: | 8 |
| Output Current Range (mA): | 0-20; 4-20 |
