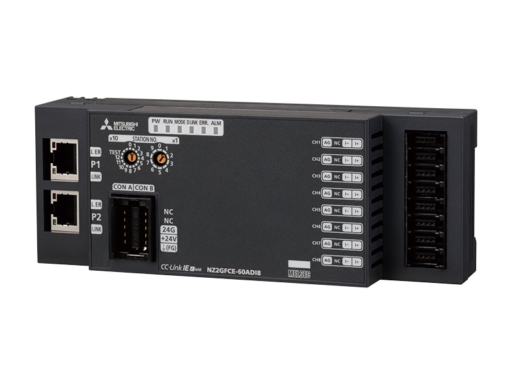

“Mitsubishi NZ2GFCE-60ADI8 – 8 Ch, 1ms/ch Speed, 0-20mA DC, e-CON Sensor”
8 channels, 0Â…20 mA DC; conversion speed, 1 ms/ch;
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | REMOTE ANALOG OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 68 |
| Weight (kg): | 0,29 |
| Width (mm): | 133 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 68 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 4 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Occupied Stations: | 1 |
| Wiring: | SCREW |
| Int. Current Consumption (A): | 0,3 |
| REACH Substance CAS Number: | 119313-12-1, 7439-92-1, 80-05-7, 80-43-3, 3147-75-9 |
| Integrated Analogue Outputs: | 4 |
| Output Voltage Range (V): | -10-10; 0-5; 1-5 |
| Output Current Range (mA): | 0-20; 4-20 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
