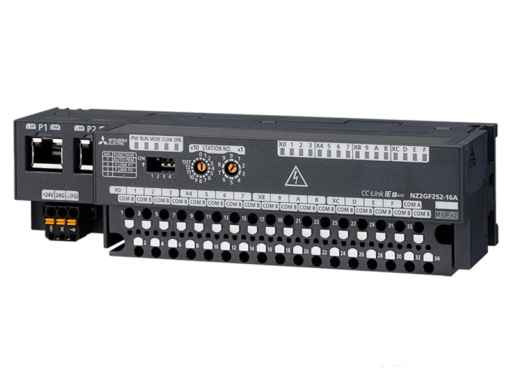

“Mitsubishi NZ2GF2S2-16A, 16-point Spring Clamp Terminal Block | 100-120V AC”
$1,153.20
16 points, 100Â…120 V AC, 50/60 Hz, spring clamp terminal block, 2-wire
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | REMOTE AC INPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 68 |
| Weight (kg): | 0,4 |
| Width (mm): | 200 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 120 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Occupied Stations: | 1 |
| Integrated Digital Inputs: | 16 |
| Rated Input Voltage (VAC): | 100-240 |
| Wiring: | SCREW |
| Int. Current Consumption (A): | 0,13 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
