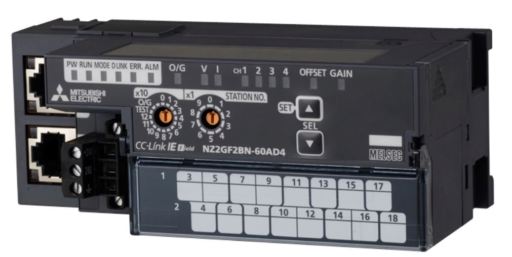

“Mitsubishi NZ2GF2BN-60AD4: 4-Channel, 10V & 20mA, 100?s/ch with Screw Terminal”
4 channels, -10 10 V DC, 0 20 mA DC; conversion speed, 100 ?s/ch;
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | REMOTE ANALOG INPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 47 |
| Weight (kg): | 0,22 |
| Width (mm): | 175 |
| Height (mm): | 65 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 110 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 4 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Occupied Stations: | 1 |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,15 |
| REACH Substance CAS Number: | 119313-12-1, 80-05-7, 71868-10-5, 96-13-9 |
| Integrated Analogue Inputs: | 8 |
| Input Voltage Range (V): | -10-10; 0-5; 1-5 |
