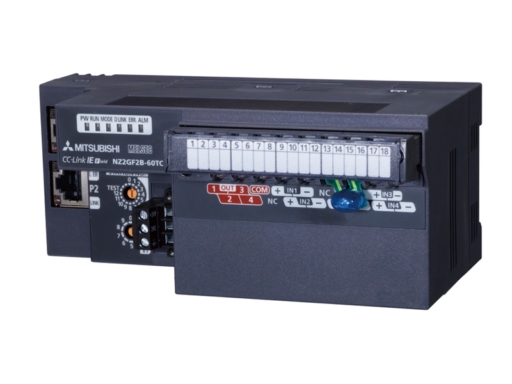

“Mitsubishi NZ2GF2B-60TCTT4: 4-Ch Thermocouple, Transistor Output”
4 channels, thermocouple input, transistor output, screw terminal block
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | TEMPERATURE INPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 76,5 |
| Weight (kg): | 0,35 |
| Width (mm): | 160 |
| Height (mm): | 65 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 0 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 7 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Occupied Stations: | 1 |
| Int. Current Consumption (A): | 0,23 |
| REACH Substance CAS Number: | 1317-36-8, 7439-92-1, 80-09-1 |
| Integrated Analogue Inputs: | 4 |
| Input Type: | RTD |
| Applicable RTD Type: | JPT100, PT100 |
