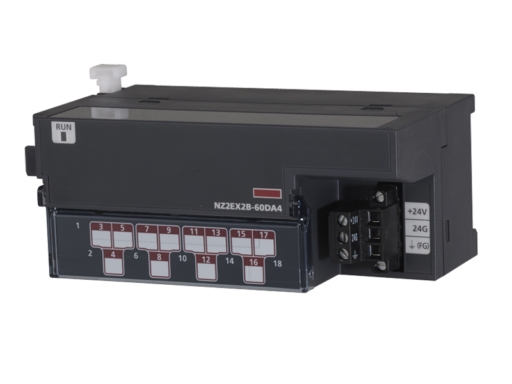

“Mitsubishi NZ2EX2B-60DA4 4-Channel Output Converter | Screw Terminal Block”
$964.80
4 channels, Output: -10Â…10 V DC, 0Â…20 mA DC, Conversion speed: 100 ?s/ch,
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | REMOTE DC INPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 38,5 |
| Weight (kg): | 0,71 |
| Width (mm): | 60 |
| Height (mm): | 235 |
| CE: | COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 78 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 12 |
| Wood (g): | 0 |
| Other paper (g): | 1 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Occupied Stations: | 1 |
| Integrated Digital Inputs: | 16 |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,3 |
| Rated Input Voltage (VDC): | 24 |
