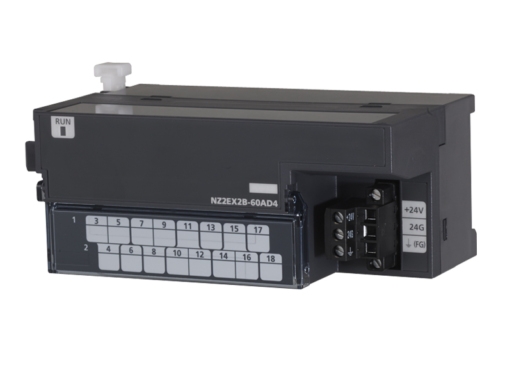

“Mitsubishi NZ2EX2B-60AD4: 4-Ch, -10-10V/0-20mA DC, 100?s/ch, Screw Terminal Block”
$846.00
4 channels, Input: -10Â…10 V DC, 0Â…20 mA DC, Conversion speed: 100 ?s/ch,
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | REMOTE ANALOG OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 68 |
| Weight (kg): | 0,23 |
| Width (mm): | 115 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 70 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Occupied Stations: | 1 |
| Wiring: | SCREW |
| Int. Current Consumption (A): | 0,135 |
| REACH Substance CAS Number: | 3147-75-9, 80-05-7, 80-43-3, 71868-10-5 |
| Integrated Analogue Outputs: | 4 |
| Output Voltage Range (V): | -10-10; 0-5; 1-5 |
| Output Current Range (mA): | 0-20; 4-20 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
