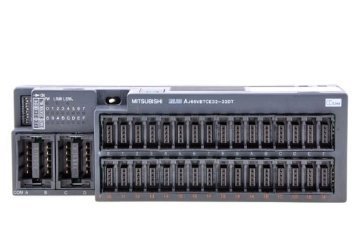

“Mitsubishi Input/Output Module AJ65VBTCE32-32DT – 16 Inputs/Outputs 24VDC”
Input / Output module, 16 Inputs 24VDC, 5mA, 1.5ms, Sink type, Three wire type; 16 Transistor Outputs 24VDC, 0.1A, Sink type. Inc. Output protection fn. Two wire type.
| Series: | CC-LINK |
| Type: | REMOTE I/O COMBINED MODULE |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 45,5 |
| Weight (kg): | 0,16 |
| Width (mm): | 155 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 120 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Occupied Stations: | 1 |
| Integrated Digital Inputs: | 16 |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,045 |
| REACH Substance CAS Number: | 7439-92-1 |
| Integrated Digital Outputs: | 16 |
| Output Type: | TRANSISTOR |
| Output Logic: | SOURCE |
| Rated Load Voltage (VDC): | 24 |
| Rated Input Voltage (VDC): | 24 |
