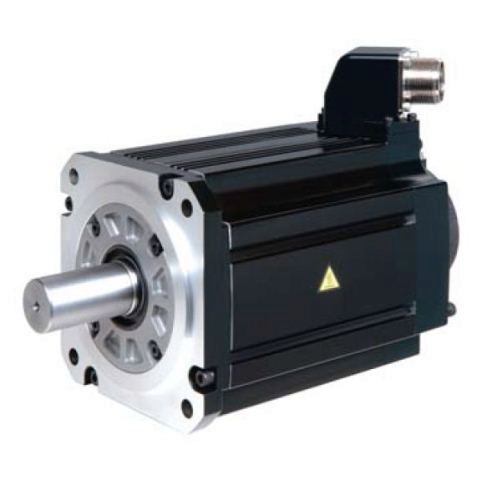

“Mitsubishi HG-JR5034 400V 5kW Servo Motor – Premium Power Supplies”
400 V, 5 kW Servo Motor
| Series: | MELSERVO-J4 |
| Type: | HG-JR |
| Power Supply (V): | 400 |
| Rated Capacity (kw): | 7 |
| Inertia: | LOW INERTIA |
| Rated Torque (Nm): | 22,3 |
| Maximum Torque (Nm): | 66,8 |
| Rated Speed (rpm): | 3 |
| Inertia (kg*cm2): | 43,3 |
| Brake: | NO |
| Shaft Type: | STRAIGHT SHAFT |
| Current Type: | AC |
| Encoder Resolution (p/rev): | 4.194.304 |
| Maximum Speed (rpm): | 5 |
| Protection Class: | IP67 |
| Encoder Type: | 22-BIT |
| Depth (mm): | 342,5 |
| Weight (kg): | 29 |
| Width (mm): | 176 |
| Height (mm): | 251,3 |
| CE: | COMPLIANT |
| EAC: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 1 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 2.53 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 13,4 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Ul/cul: | COMPLIANT |
