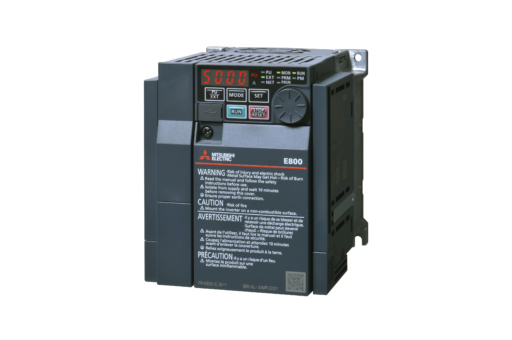

“Mitsubishi FR-E820S-0050-4-60 1-Phase 0.75kW 200V Standard Model with Coating”
1-Phase 200V 0.75kW; Standard model; RS485 + SIL2/PLd; Voltage (terminal AM); 50Hz; Source Logic; with coating
| Series: | FR-E800 SERIES |
| Type: | FR-E800 RS485 INVERTER |
| Current Type: | AC |
| Depth (mm): | 161 |
| Weight (kg): | 1,4 |
| Width (mm): | 108 |
| Height (mm): | 128 |
| CE: | COMPLIANT |
| EAC: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 290 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 10 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Integrated Digital Inputs: | 7 |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| USB: | 1 (MINI B) |
| Ethernet Port: | NO |
| Integrated Analogue Inputs: | 2 |
| Integrated Analogue Outputs: | 1 |
| Program Memory: | 2K |
| Program Memory Unit: | STEPS |
| Expandable: | YES |
| RS-485: | 1 |
| Protection Class: | IP20 |
| Display: | BUILT-IN |
| Minimum Rated Voltage (V): | 200 |
| Min. Permissible Voltage (V): | 170 |
| Maximum Rated Voltage (V): | 240 |
| Max. Permissible Voltage (V): | 264 |
| Phases: | 1 |
| Rated Output Current ND (A): | 8 |
| Rated Motor Capacity ND (kw): | 1,5 |
| Control Method: | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type: | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%): | 100 |
| Integrated EMC Filter: | NO |
| Safe Torque Off (STO): | YES |
| Regenerative (4Q): | NO |
| Integrated DC Choke: | NO |
| Display Type: | 4 DIGITS LED |
| PLC Function: | YES |
| Digital Outputs (Transistor): | 2 |
| Digital Outputs (Relay): | 1 |
| IO Type of Terminal Block: | SPRING CLAMP |
| Built-in Network: | MODBUS-RTU |
| Leakage Current (mA): | 1,2 |
| Power Loss ND (W): | 80 |
| Frequency Range (Hz): | 0,2–590 |
