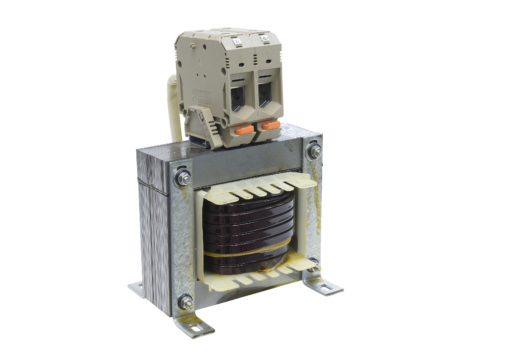

“Mitsubishi DC Reactor FR-HEL-45K for 45kW, 200V – Optimized Power Solution”
DC Reactor for 45kW; 200V
| Type: | DC LINK CHOKE |
| Current Type: | DC |
| Protection Class: | IP00 |
| Depth (mm): | 134 |
| Weight (kg): | 14,4 |
| Width (mm): | 150 |
| Height (mm): | 237 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Applicable Inverter: | FR-F800, FR-A741, FR-A800, FR-D700-SC, FR-E800 |
| Rated Current (A) (fa_ger_79): | 233 |
| Power Loss (W): | 65,5 |
| Rated Voltage (V): | 200 |
| Inductance (mH): | 0,13 |
| Rated Capacity (kw): | 55 |
