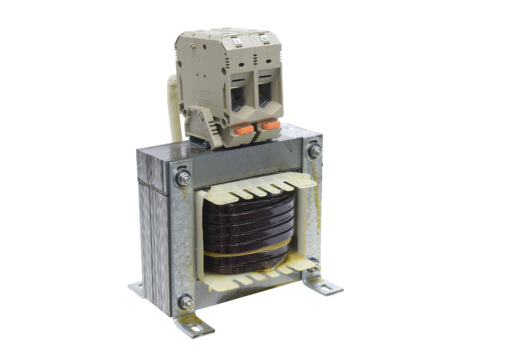

“Mitsubishi DC Reactor 37kW 200V – Product Code FR-HEL-37K” | Variable Speed Drive (VSD)
$1,523.76
DC Reactor for 37kW; 200V
| Type: | DC LINK CHOKE |
| Current Type: | DC |
| Protection Class: | IP00 |
| Depth (mm): | 114 |
| Weight (kg): | 10,7 |
| Width (mm): | 150 |
| Height (mm): | 237 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Applicable Inverter: | FR-A741, FR-A800, FR-D700-SC, FR-E800, FR-F800 |
| Rated Current (A) (fa_ger_79): | 190 |
| Power Loss (W): | 72,4 |
| Rated Voltage (V): | 200 |
| Inductance (mH): | 0,16 |
| Rated Capacity (kw): | 45 |
