“Mitsubishi DC Reactor 1.5kW 400V – FR-HEL-H1.5K Product” | Variable Speed Drive (VSD)
$332.64

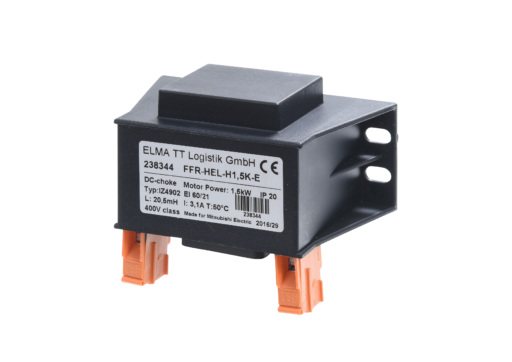

DC reactor for 1.5kW; 400V
| Type: | DC LINK CHOKE |
| Current Type: | DC |
| Depth (mm): | 81 |
| Weight (kg): | 1,2 |
| Width (mm): | 112,5 |
| Height (mm): | 71,5 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 37 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 37 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 0 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Protection Class: | IP20 |
| Applicable Inverter: | FR-A741, FR-A800, FR-D700-SC, FR-E800, FR-F800 |
| Rated Current (A) (fa_ger_79): | 4,4 |
| Power Loss (W): | 17,8 |
| Rated Voltage (V): | 400 |
| Inductance (mH): | 14,2 |
| Rated Capacity (kw): | 2,2 |
