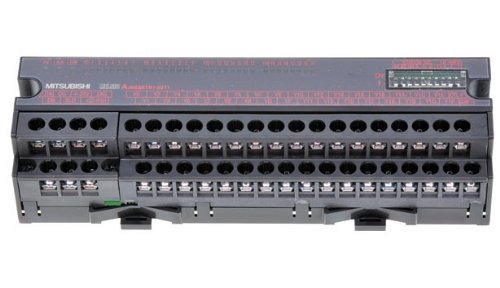

“Mitsubishi AJ65SBTB1-32T1 Module: 32 Transistor Outputs, 12/24VDC”
Output module, 32 Transistor (sink type) Outputs, 12/24VDC, 0.5A, One wire type
| Series: | CC-LINK |
| Type: | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 40 |
| Weight (kg): | 0,14 |
| Width (mm): | 87,3 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 33 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 9 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Occupied Stations: | 1 |
| Wiring: | SCREW |
| Int. Current Consumption (A): | 0,035 |
| REACH Substance CAS Number: | 7439-92-1, 2451-62-9 |
| Integrated Digital Outputs: | 8 |
| Output Type: | TRANSISTOR |
| Output Logic: | SOURCE |
| Rated Load Voltage (VDC): | 24-Dec |
