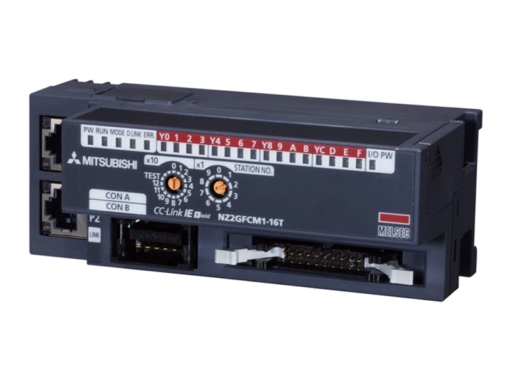

“Mitsubishi 16T NZ2GFCM1-16T – 12/24V DC, Sink Type, MIL 20-Pin Connector”
$533.50
16 points, 12/24 V DC (0.5 A), sink type, MIL connector (20 pin), 1-wire
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 68 |
| Weight (kg): | 0,24 |
| Width (mm): | 133 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 70 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 7 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Occupied Stations: | 1 |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,19 |
| Integrated Digital Outputs: | 16 |
| Output Type: | TRANSISTOR |
| Output Logic: | SOURCE |
| Rated Load Voltage (VDC): | 24-Dec |
