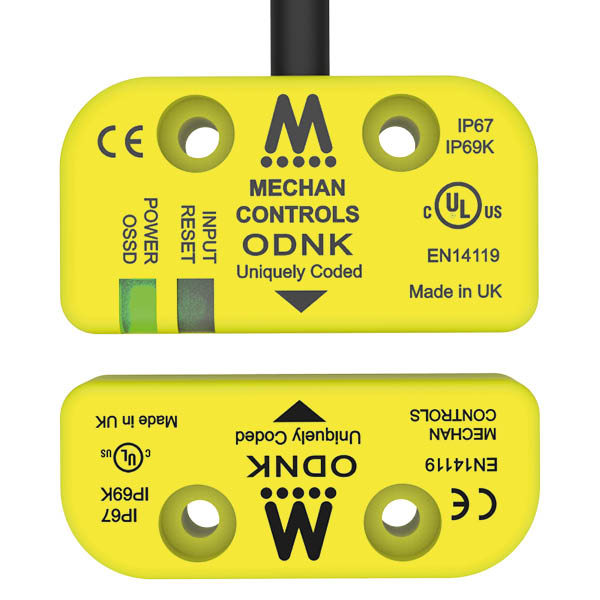

Mechan 365.035 | ODNK-30-DC-03M SAFETY SWITCH & ACTUATOR
Housing:Yellow ABS, Resin EncapsulatedContacts:2 OSSD + 1NC (with door open)Contact Rating:2Amp – 24VDCCoding:Uniquely Coded, RFIDIndication:Dual RGB (Advanced Diagnostics)Ingress Protection Rating:IP67 and IP69KODNK are standalone, non-contact RFID safety switches. With 2 OSSD safety outputs and 1NC contact, capable of switching 2A at 24Vdc. The uniquely coded RFID has a possible 4 billion code combinations and the OSSD outputs are suitable for series connection up to 30off, maintaining PL-e.The ODNK includes dual RGB LEDs for advanced on-switch diagnostics and the overhanging design improves visibility in awkward mounting positions. The ODNK safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.The O-Type switches can be used with a feaÂture called EDM (external device monitorÂing). This means you can monitor the state of contactors or safety relays in order to detect failure of the external device eliminating the need for a safety monitoring device.Request Quote
Request a quote
Attribute | Value |
---|---|
Construction: | External Device Monitoring |
Indication: | Yellow ABS |
IP Rating: | Dual RGB LEDs |
Weight: | IP67 / IP69K |
Supply Voltage Options: | 4 x M4 Security Screws |
Power Consumption: | 24VDC (+/- 15%) |
Safety Output: | 550mA (With all Outputs at max. Power) |
Safety Output Rating: | 2 OSSD |
Coding: | Pre-Wired |
Input: | 3, 6, 10 Metre |
Dimensions of Control Unit (mm): | Uniquely Coded RFID |
Storage Temperature: | See Technical Drawings Tab |
Product Number | Variant Description |
---|---|
365.037 | ODNK-30-DC-10M SAFETY SWITCH & ACTUATOR |
365.036 | ODNK-30-DC-06M SAFETY SWITCH & ACTUATOR |
