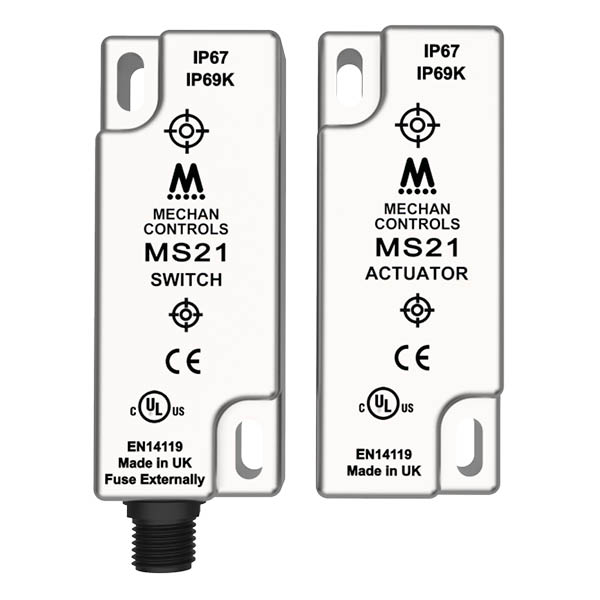

Mechan 359.091 | MS21-SS-21-DC-8QD SWITCH & ACT (NO CABLE)
Housing:316 Stainless Steel, Resin EncapsulatedContacts:2NO + 1NC (with door open)Contact Rating:2Amp 230VAC / 1Amp 24VDCConnection Type:M12, 6-PoleOperating Distance:8mm ON / 28mm OFFIngress Protection Rating:IP67 and (IP69K: Pre-Wired Only)The MAGNASAFE MS21 safety switches are fully encapsulated into a 316 Grade Stainless Steel wide bodied housing. The MS21 safety switches are easy to install, tolerant to misalignment and the non-contact operation has a 8mm switching distance helping to ensure a long and trouble free operating life.Request Quote
Request a quote
Attribute | Value |
---|---|
Indication: | 316 Grade Stainless Steel |
Weight: | IP67 |
Supply Voltage Options: | 4 x M4 Security Screws |
Safety Output Rating: | Up to 2 x NO |
Coding: | Quick disconnect |
Input: | 5 or 10 metre |
Dimensions of Control Unit (mm): | Magnet & Reed |
Storage Temperature: | 79 x 33 x 16mm |
