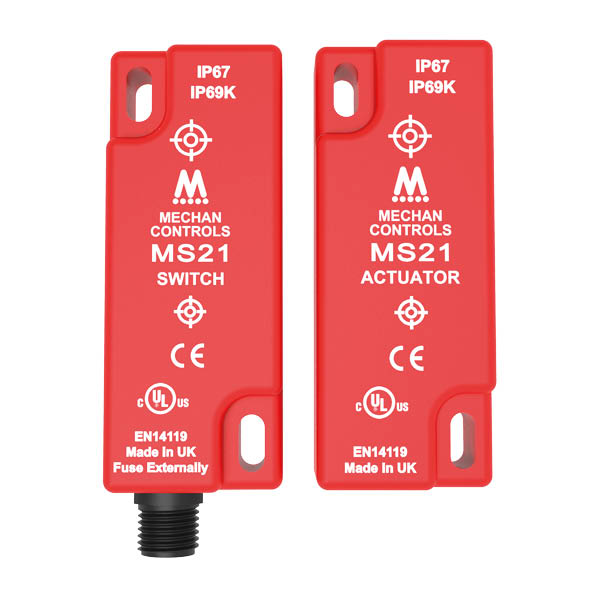

Mechan 359.027 | MS21-21-DC-QD MAGNASAFE SWITCH & ACT (NO CABLE)

Housing:Red ABS, Resin EncapsulatedContacts:1NO + 1NC, 2NO, 2NO + 1NC (with door open)Contact Rating:2Amp 230VAC / 1Amp 24VDCConnection Type:M12, 4-Pole / 6-PoleOperating Distance:8mm ON / 28mm OFFIngress Protection Rating:IP67 and (IP69K: Pre-Wired Only)The MAGNASAFE MS21 safety switches are fully encapsulated into an ABS wide bodied housing. With an M12 connector in the switch making them even easier to install, the MS21 safety switches are tolerant to misalignment, the 10mm switching distance helping to ensure a long and trouble free operating life.Request Quote
