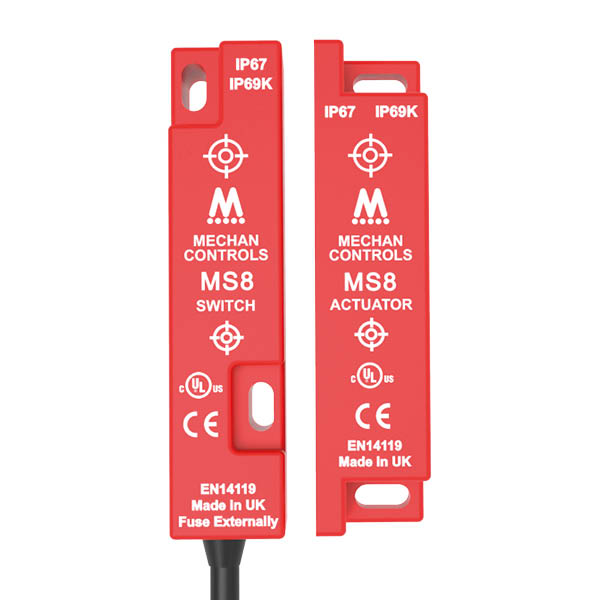

Mechan 358.01 | MS8-20-DC-03M MAGNASAFE SAFETY SWITCH
Housing:Red ABS, Resin EncapsulatedContacts:2NO, 2NO + 1NC (with door open)Contact Rating:300mA 24VDCConnection Type:Pre-Wired Cable, 6 coresOperating Distance:30mm ON / 50mm OFFIngress Protection Rating:IP67 and IP69KThe MAGNASAFE MS8 non-contact safety switches are an industry standard, slim-line, space saving housing made from Red ABS. Fully encapsulated, the MS8 safety switches have been designed with a larger than standard switching distance to ensure easy to install, tolerant to misalignment. The non-contact operation has a 30 – 50 mm switching distance helping to ensure a long and trouble free operating life where guarding alignment is an issue.Request Quote
Request a quote
Attribute | Value |
---|---|
Indication: | Red ABS, Resin Filled |
Weight: | IP67 / IP69K |
Supply Voltage Options: | 4 x M4 Security Screws |
Safety Output Rating: | Up to 2 x NO |
Coding: | Pre-wired |
Input: | 3 or 6 metre |
Dimensions of Control Unit (mm): | Magnet & Reed |
Storage Temperature: | 82.5 x 19 x 17mm |
Product Number | Variant Description |
---|---|
358.011 | MS8-20-DC-06M MAGNASAFE SAFETY SWITCH |
