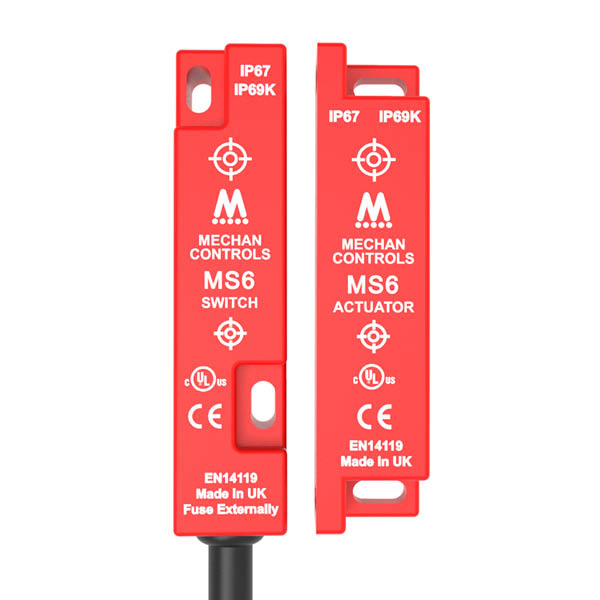

Mechan 356.032 | MS6-10-110AC-03M MAGNASAFE SAFETY SWITCH
Housing:316 Stainless Steel, Resin EncapsulatedContacts:1NO, 1NO + 1NC, 2NO, 2NO + 1NC (with door open)Contact Rating:2Amp 230VAC / 1Amp 24VDCConnection Type:M12, 4-Pole / 6-PoleOperating Distance:10mm ON / 28mm OFFIngress Protection Rating:IP67 and IP69K (pre-wired only)The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has an 10 – 28 mm switching distance helping to ensure a long and trouble free operating life.Request Quote
| Attribute | Value |
|---|---|
| Indication: | Red ABS, Resin Filled |
| Weight: | IP67 / IP69K |
| Supply Voltage Options: | 4 x M4 Security Screws |
| Safety Output Rating: | Up to 2 x NO |
| Coding: | Pre-wired |
| Input: | 3, 6 or 10 metre |
| Dimensions of Control Unit (mm): | Magnet & Reed |
| Storage Temperature: | 82.5 x 19 x 17mm |
| Product Number | Variant Description |
|---|---|
| 359.092 | MS21-SS-10-110AC-03M MAGNASAFE SAFETY SWITCH |
| 350.014 | MS1-10-110AC-03M MAGNASAFE (switch only) |
| 353.004 | MS4-10-110AC-03M Magnasafe safety switch |
| 356.038 | MS6-10-110AC-10M MAGNASAFE SAFETY SWITCH |
| 356.036 | MS6-10-110AC-06M MAGNASAFE SAFETY SWITCH |
| 350.005 | MS1-10-110AC-06M MAGNASAFE SAFETY SWITCH |
| 350.004 | MS1-10-110AC-03M MAGNASAFE SAFETY SWITCH |
