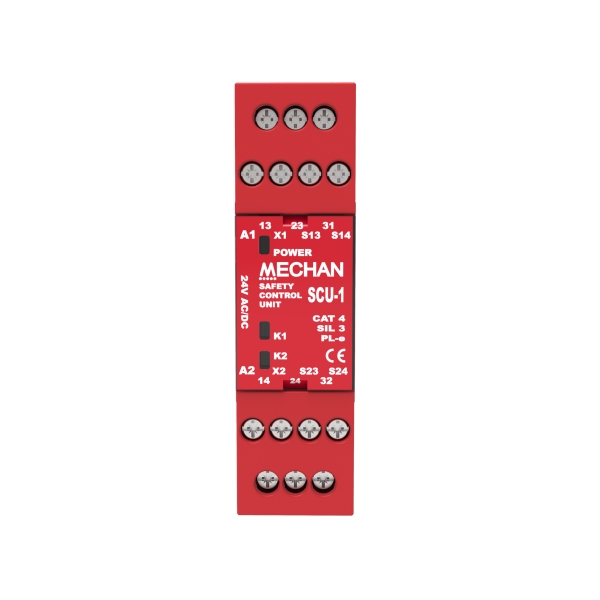

Mechan 340 | SCU1 Safety Control Unit 24 VDC
– Safety Control Module
– 24VAC/DC Supply
– LED Diagnostics
– Dual Channel Output
– Automatic/Manual-Monitored ResetThe SCU is the control module for the HE Series safety switches. The SCU provides 2 NO force guided contact safety outputs, internal and external relay monitoring circuit, LED system indication.The SCU requires 24VAC/DC power supply and has 2 NO safety contact outputs capable of switching up to 4Amps @ 230VAC.Request Quote
| Attribute | Value |
|---|---|
| Construction: | Manual / Automatic |
| Indication: | Red Polycarbonate housing and terminals |
| IP Rating: | LED’s for Power & Output K1 & K2 |
| Weight: | Housing IP40, Terminals IP20 |
| Supply Voltage Options: | 35mm DIN Rail |
| Power Consumption: | 24VAC/DC (+/- 15%) |
| Safety Output: | 3VA |
| Safety Output Rating: | 2 x NO |
| Operating Temperature: | 22.5 x 84 x 119mm |
