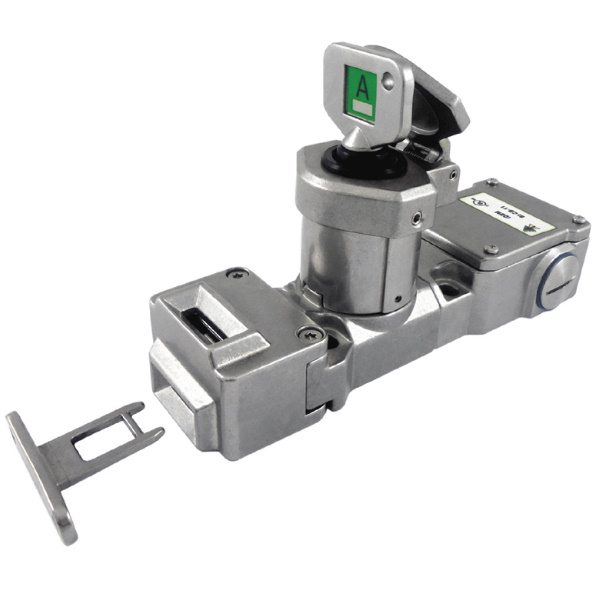

Idem SS-TS-CB-22-M: Single 2NC 2NO Tongue Interlock with Contact BlockM20
$1,391.89
Explore the Idem SS-TS-CB-22-M: Single 2NC 2NO Tongue Interlock with Contact BlockM20. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | SS-TS-CB-22-M |
| Operating Temperature: | -20 … +60 °C |
| Mechanical Life (b10d): | 1,000,000 cycles |
| Approvals: | cULus |
| Enclosure Protection: | IP67, IP69K (NEMA 6) |
| Holding Force: | 3000N. (F1max.) 2307N. (Fzh) |
| Enclosure Material: | 316 Grade Stainless Steel |
| Thermal Current (Ith): | 10A |
| Safety Contact Type: | IEC 60947-5-1 Double break Type Zb |
| Termination: | Clamp up to 2.5 sq. mm conductors |
| Rating: | Utilisation Category AC15 |
| Operational Rating: | AC15 A300 240V. 3A /120V 6A. ac |
| Rated Insulation Voltage (Ui): | 500V |
| Withstand Voltage (Uimp): | 2500V |
| Short Circuit Overload Protection: | Fuse Externally 10A. (FF) |
