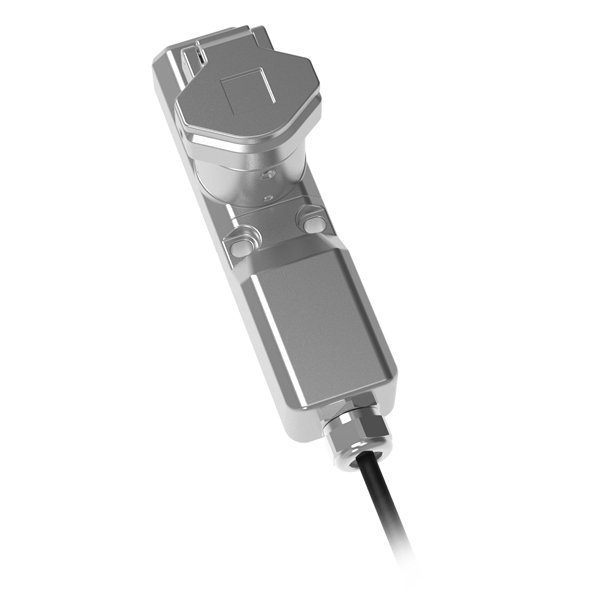

Idem SS-ISB-CB-22-EX: Control 2NC 2NO Switch Box EX with 3m Pre-wired Stainless St
$2,484.94
Explore the Idem SS-ISB-CB-22-EX: Control 2NC 2NO Switch Box EX with 3m Pre-wired Stainless St. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | SS-ISB-CB-22-EX |
| Operating Temperature: | -25 … +80 °C |
| Mechanical Life (b10d): | 1,000,000 cycles |
| Approvals: | IECEx, cULus on LS-Ex Internal Contact Block |
| Technology: | Trapped Key Control Switch |
| Housing Material: | 316 Grade Stainless Steel |
| Enclosure Protection: | IP67, IP69K (NEMA 6) |
| Switching frequency (LS-Ex): | 1.0 Hz maximum |
| Mechanical Life Expectancy (ls-ex): | 1,000,000 switches |
| Electrical Life Expectancy (ls-ex): | Tested to 1,000,000 cycles at 24V. 0.2A |
