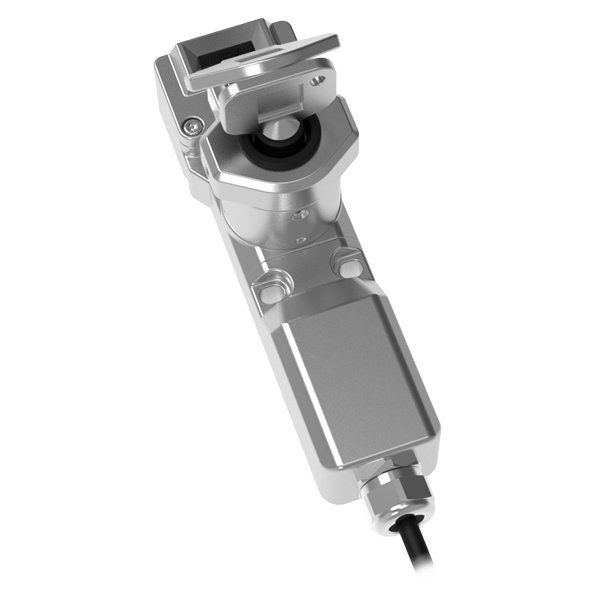

Idem M-TS-CB-22-EX: Single 2NC 2NO Tongue Interlock with EX with 3 meter Pre-Wi | Tongue Interlock Switches
$1,923.00
“Safe, explosion-proof switch with trapped key and tongue interlock.”
| Attribute | Value |
|---|---|
| Approvals: | IECEx, cULus on LS-Ex Internal Contact Block |
| Technology: | Trapped Key Interlock with Electrical Monitoring |
| Housing Material: | 316 Grade Stainless Steel |
| UL Info: | Comes with 3m of pre-wired cable (longer available on request). Key sold separately. Actuator sold separately. ATEX Zones 1,21,2,22 II 2G Ex mb IIC T6 Gb II 2D Ex mb IIIC T80C Db |
| Enclosure Protection: | IP67, IP69K (NEMA 6) |
| Operating Temperature: | -25 … +60 °C |
| Holding Force: | 3000N. (F1max.) 2307N. (Fzh) |
| Mechanical Life (b10d): | 1,000,000 cycles |
| Switching frequency (LS-Ex): | 1.0 Hz maximum |
| Mechanical Life Expectancy (ls-ex): | 1,000,000 switches |
| Electrical Life Expectancy (ls-ex): | Tested to 1,000,000 cycles at 24V. 0.2A |
| Product Number | Variant Description |
|---|---|
| M-TSR-CB-22-N | Single 2NC 2NO Tongue Interlock with Contact Block NPTKey |
| M-TSR-CB-22-M | Single 2NC 2NO Tongue Interlock M20Key Free |
| M-TS-CB-22-N | Single 2NC 2NO Tongue Interlock with Contact Block NPT |
| SS-TS-CB-22-EX | Single 2NC 2NO Tongue Interlock with EX with 3 meter Pre-Wi |
| SS-TS-CB-22-M | Single 2NC 2NO Tongue Interlock with Contact BlockM20 |
| SS-TS-CB-22-N | Single 2NC 2NO Tongue Interlock with Contact BlockNPT |
| M-TS-CB-22-M | Single 2NC 2NO Tongue Interlock with Contact Block M20 |
| SS-TSR-CB-22-M | Single 2NC 2NO Tongue Interlock with Contact BlockM20Key |
| SS-TSR-CB-22-M-CEF | Single 2NC 2NO Tongue Interlock with CB no dust cap fitted |
| SS-TSR-CB-22-N | Single 2NC 2NO Tongue Interlock with Contact BlockNPTKey |
