Idem M-ISB4-SR-31: Control 3NC 1NO Switch Solenoid Release M20 | Solenoid Locking Switches

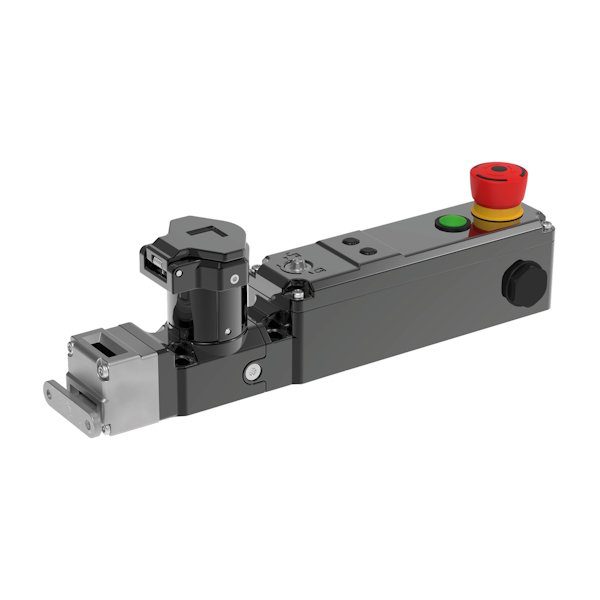

“Emergency Stop Solenoid Key Release with Pushbutton Control”
| Attribute | Value |
|---|---|
| UL Info: | Key sold separately Actuator sold separately Optional pushbutton (PB) and illuminated emergency stop (ES) available LED2 Green is an auxiliary indication circuit for optional user use |
| Material: | Die-Cast Metal with 316 Stainless Steel Head |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -20 … +40 °C |
| Holding Force: | 3000N. (F1max.) 2307N. (Fzh) |
| Mechanical Life (b10d): | 1,000,000 cycles |
| Solenoid Voltage: | 24V.dc (+/- 10%) |
| LED2 voltage: | 24V.dc (+/- 10%) |
| Conduit Exit: | M20 |
| Product Number | Variant Description |
|---|---|
| SS-ISB4-SR-31-PB | Control 3NC 1NO Switch Solenoid Release M20 + Push Button |
| SS-ISB4-SR-31 | Control 3NC 1NO Switch Solenoid Release M20 |
| M-ISB-CB-31-M | Control 3NC 1NO Switch Box M20 Die Cast |
| SS-ISB-CB-31-M | Control 3NC 1NO Switch Box M20 Stainless Steel |
| M-ISB4-SR-31-PB | Control 3NC 1NO Switch Solenoid Release M20 + Push Button |
