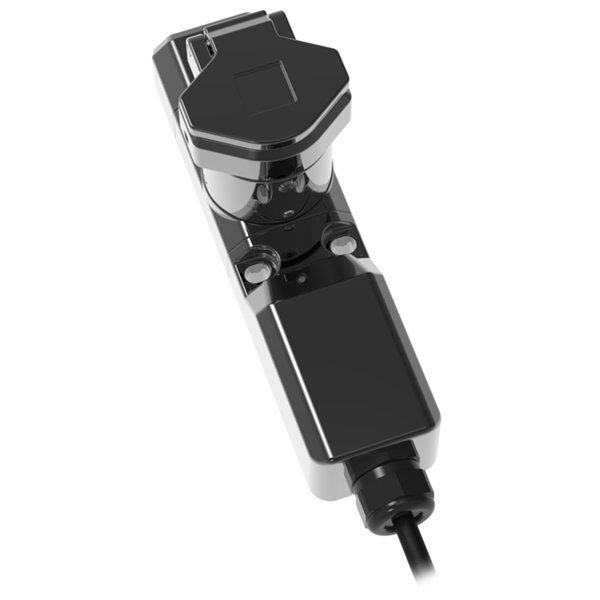

Idem M-ISB-CB-11-EX: Control 1NC 1NO Switch Box EX with 3m Pre-wired Die Cast | Solenoid Locking Switches
$1,520.00
“Secure, explosion-proof isolation switch with trapped key control.”
| Attribute | Value |
|---|---|
| Approvals: | IECEx, cULus on LS-Ex Internal Contact Block |
| Technology: | Trapped Key Control Switch |
| Housing Material: | Die-Cast Aluminum |
| UL Info: | Comes with 3m of pre-wired cable (longer available on request). Key sold separately. ATEX Zones 1,21,2,22 II 2G Ex mb IIC T6 Gb II 2D Ex mb IIIC T80C Db |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Mechanical Life (b10d): | 1,000,000 cycles |
| Switching frequency (LS-Ex): | 1.0 Hz maximum |
| Mechanical Life Expectancy (ls-ex): | 1,000,000 switches |
| Electrical Life Expectancy (ls-ex): | Tested to 1,000,000 cycles at 24V. 0.2A |
| Product Number | Variant Description |
|---|---|
| SS-ISB-CB-11-EX | Control 1NC 1NO Switch Box EX with 3m Pre-wired Stainless St |
