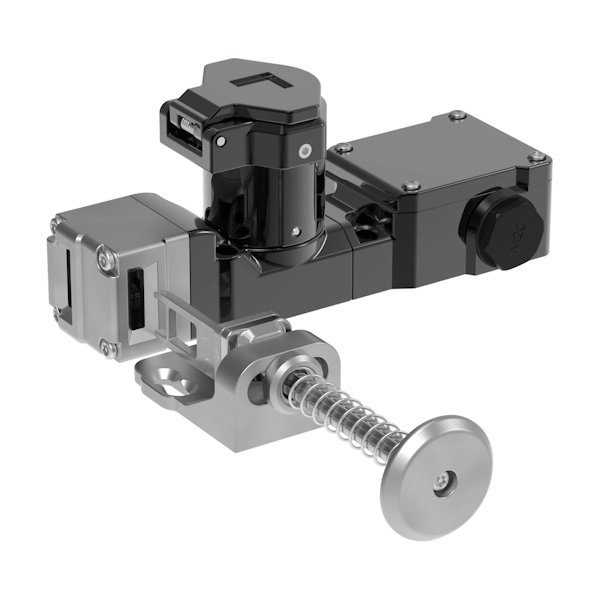

Idem M-HT-D-L-11: Die Cast Handle Tongue Interlock 1 Key Free 1 Key Trapped LH | Tongue Interlock Switches
$1,154.00
“Secure key interlock system with spring handle and contact block.”
| Attribute | Value |
|---|---|
| Approvals: | cULus |
| UL Info: | Key sold separately |
| Safety Contact Type: | IEC 60947-5-1 Double break Type Zb |
| Termination: | Clamp up to 2.5 sq. mm conductors |
| Rating: | Utilisation Category AC15 |
| Operational Rating: | AC15 A300 240V. 3A /120V 6A. ac |
| Thermal Current (Ith): | 10A |
| Rated Insulation Voltage (Ui): | 500V |
| Withstand Voltage (Uimp): | 2500V |
| Short Circuit Overload Protection: | Fuse Externally 10A. (FF) |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -20 … +60 °C |
| Holding Force: | 3000N. (F1max.) 2307N. (Fzh) |
| Mechanical Life (b10d): | 1,000,000 cycles |
| Enclosure Material: | Die-Cast Metal / 316 Stainless Steel Head and Handle |
| Product Number | Variant Description |
|---|---|
| M-HT-D-R-11-CK | Die Cast Handle Tongue Interlock 1 Key Free 1 Key Trapped RH (CK) |
| M-HT-S-L | Die Cast Handle Tongue Interlock 1 Key Free Act. Locked LH |
| M-HT-S-R | Die Cast Handle Tongue Interlock 1 Key Free Act. Locked RH |
| M-KR | Die Cast Key Release Unit |
| M-MV-FCL-1 | Die Cast Mini Valve Interlock Key Free Locked Closed 1 |
| M-KR-R | Die Cast Key Release Reverse Unit |
| M-HT-D-R-11 | Die Cast Handle Tongue Interlock 1 Key Free 1 Key Trapped RH |
| M-MV-FCL-1/2 | Die Cast Mini Valve Interlock Key Free Locked Closed 1/2 |
| M-MV-FCL-1/4 | Die Cast Mini Valve Interlock Key Free Locked Closed 1/4 |
| M-MV-FCL-3/8 | Die Cast Mini Valve Interlock Key Free Locked Closed 3/8 |
| M-MV-FOP-1 | Die Cast Mini Valve Interlock Key Free Locked Open 1 BS |
| M-MV-FOP-1/2 | Die Cast Mini Valve Interlock Key Free Locked Open 1/2 |
| M-MV-FOP-1/4 | Die Cast Mini Valve Interlock Key Free Locked Open 1/4 |
| M-MV-FOP-2 | Die Cast Mini Valve Interlock Key Free Locked Open-2 BSPP |
| M-MV-FOP-3/8 | Die Cast Mini Valve Interlock Key Free Locked Open 3/8 |
