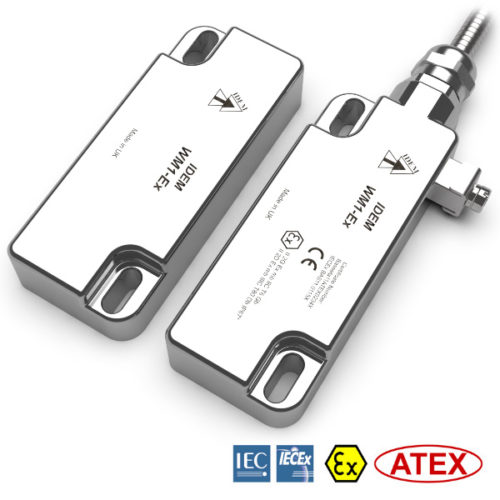

Idem 900102: WM1-Ex-SS 2NC 1NO 10M 230Vac/24Vdc
$2,304.43
Explore the Idem 900102: WM1-Ex-SS 2NC 1NO 10M 230Vac/24Vdc. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 900102 |
| Technology: | Magnetic |
| Housing Material: | 316 Grade Stainless Steel |
| Certificates: | IECEx |
| Recommended setting gap: | 5mm |
| Tolerance to misalignment: | 5mm in any direction from 5mm setting gap |
| Switching frequency: | 1.0 Hz Maximum |
| Temperature range: | See conditions of use |
| Enclosure Protection: | IP67 (Fully encapsulated) |
| Mechanical Reliability (b10d): | 3.3 million operations at 100mA load |
| Mttfd: | 470 years (Proof Test Interval 47 years) |
| Cable Type: | PVC 7 core or 3 core 6.5mm O.D. Max. |
| Mounting bolts: | M4 Tightening torque 1.5 Nm |
