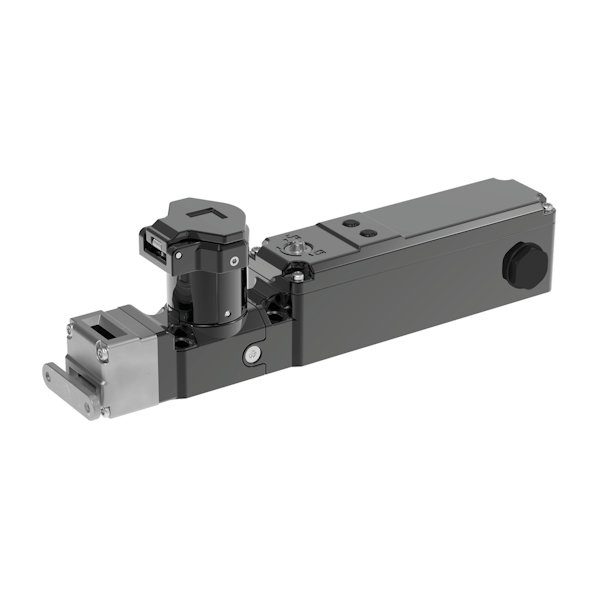

Idem 820001: M-TS-SR 2NC 2NO Manual Release M20 | Safety Switch Accessories
A safe, reliable IDEM electrical Solenoid Key Release.’
| Attribute | Value |
|---|---|
| UL Info: | Key sold separately Actuator sold separately Optional pushbutton (PB) and illuminated emergency stop (ES) available LED2 Green is an auxiliary indication circuit for optional user use |
| Material: | Die-Cast Metal with 316 Stainless Steel Head |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -20 … +40 °C |
| Holding Force: | 3000N. (F1max.) 2307N. (Fzh) |
| Mechanical Life (b10d): | 1,000,000 cycles |
| Solenoid Voltage: | 24V.dc (+/- 10%) |
| LED2 voltage: | 24V.dc (+/- 10%) |
| Conduit Exit: | M20 |
| Product Number | Variant Description |
|---|---|
| 820301-PB | M-TS-SR 2NC 2NO No Manual Release M20 + Push Button |
| 820301-ES | M-TS-SR 2NC 2NO No Manual Release M20 + E-Stop Button |
| 820301 | M-TS-SR 2NC 2NO No Manual Release M20 |
| 820001-ES | M-TS-SR 2NC 2NO Manual Release M20 + E-Stop Button |
| 820001-PB | M-TS-SR 2NC 2NO Manual Release M20 + Push Button |
| 820001-PB-ES | M-TS-SR 2NC 2NO Manual Release M20 + Push Button & E-Sto |
| 820301-PB-ES | M-TS-SR 2NC 2NO No Manual Release M20 + Push Button & E-S |
