Idem 521002: UGB4-KLT-SS-RFID-RR Manual override | Safety Switch Accessories

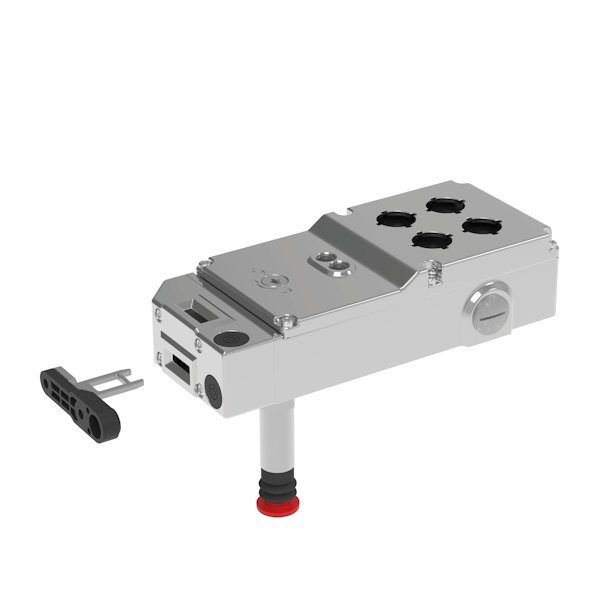

“Four-station RFID Safety Gate Box with rear-release functionality.”
| Attribute | Value |
|---|---|
| Approvals: | TUV, cULus |
| Technology: | RFID, Power to Unlock |
| Housing Material: | 316 Grade Stainless Steel |
| Power Consumption: | R+ 1.2W (50mA Max.) / S+ 12W (500mA Max.) |
| Mttfd: | 1100a |
| UL Info: | Type 1 enclosure. Maximum temperature 40°C. Use 16-28AWG copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. Safety Circuits (11-31 & 21-41) A300 Pilot Duty. 240V. 3A. (PF 0.38 or greater tested for 6,000 cycles endurance). Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit. (Earth bonding terminal inside enclosure if required – use 16-12AWG conductors). Push Button ratings (Optional) 120 -240 Vac, 1.5 – 1.0 A 24 – 125 Vdc, 0.3 – 0.2 A |
| Performance Level: | e (If both channels are used in conjunction with a SIL 3 / PL e control device) |
| Category: | Cat 4 |
| Diagnostic Coverage DC: | 99% (High) (If both channels are used in conjunction with a SIL 3 / PL e control device) |
| Safety Integrity Level: | SIL 3 |
| PFH (1/h): | 4.77E-10 (Corresponds to 4.8% of SIL3) |
| PFD: | 4.18E-05 (Corresponds to 4.2% of SIL3) |
| Proof Test Interval T1: | 20a |
| Enclosure Protection: | IP65 |
| Operating Temperature: | -25 … +40 °C |
| Vibration: | IEC68-2-6, 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min |
| Holding Force: | F1Max 3000N Fzh 2307N |
| Supply Voltage: | 24Vdc (+/- 10%) |
| Rated Insulation Voltage: | 500VAC |
| Actuator entry minimum radius: | 175mm |
| Classification and Coding Level according to EN ISO 14119: | Type 4, High |
| Safety Circuits: | 24Vdc 200mA max. switching |
| Auxiliary Circuits (34 & 44): | 24Vdc 200mA max. Output feed |
| Rated Impulse withstand: | 1000VAC |
| Assured locking distance: | 5mm |
| Sao (RFID): | 10mm |
| Sar (RFID): | 20mm |
| Max operating frequency: | 1Hz |
| Mechanical Life Expectancy (b10d): | 2.5 x 10 6 cycles at 100mA load |
