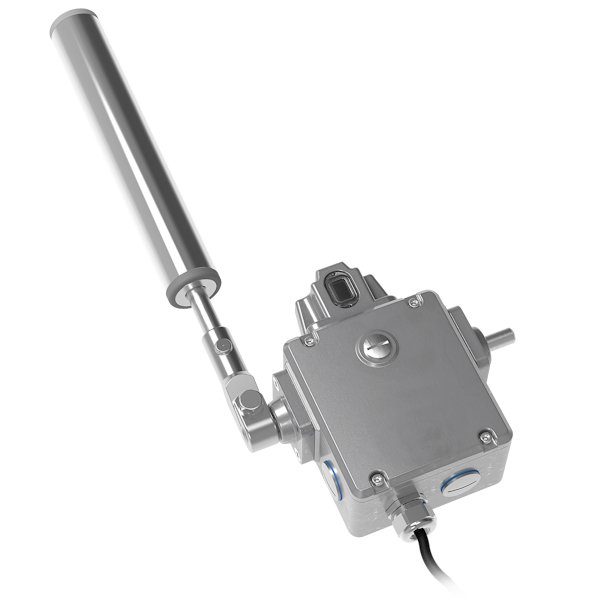

Idem 501051: Belt 2NC 2NO Switch SS 35Mm Roller Long M20 EX 3m Pre-wired
$2,575.19
Explore the Idem 501051: Belt 2NC 2NO Switch SS 35Mm Roller Long M20 EX 3m Pre-wired. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 501051 |
| Approvals: | IECEx, cULus on LS-Ex Internal Contact Block |
| Technology: | Belt Alignment Switch |
| Housing Material: | 316 Grade Stainless Steel |
| Roller Material: | 316 Grade Stainless Steel |
| Enclosure Protection: | IP67, IP69K (NEMA 6) |
| Torque settings: | Mounting M5 4.0 Nm Lid T20 Torx M4 1.5 Nm Terminals 1.0 Nm |
| Switching range: | WARNING signal 10 to 18 degrees / STOP signal 15 to 35 degrees |
| Operating Torque range (adjustable): | Medium Duty 1.8Nm to 2.8Nm / Heavy Duty 3.0Nm to 5.0Nm |
| Maximum tilt angle (mounting angle): | 30 degrees |
| Maximum Deflection: | 65 degrees |
| Switching frequency (LS-Ex): | 1.0 Hz maximum |
| Mechanical Life Expectancy (ls-ex): | 1,000,000 switches |
| Electrical Life Expectancy (ls-ex): | Tested to 1,000,000 cycles at 24V. 0.2A |
