Idem 500203: 50mm Roller Replacement | Safety Switch Accessories

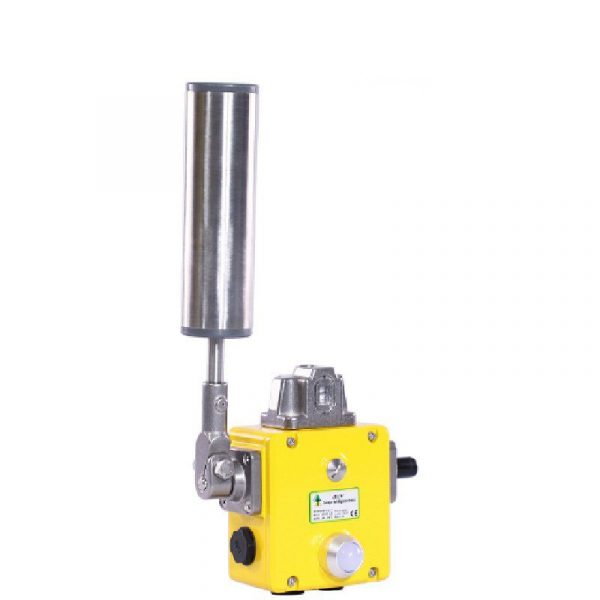

“Heavy-duty, die-cast belt alignment switch with 170mm roller.”
| Attribute | Value |
|---|---|
| Approvals: | cULus |
| Technology: | Belt Alignment Switch |
| Housing Material: | Yellow Painted Die-Cast Metal |
| UL Info: | Type 1 Enclosures. Use 16 – 14AWG copper conductors, rated 70ºC only. Intended for same polarity use. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V.ac 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V.ac 10A. carry only. Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required. The device is permitted to control more than one load provided the total load connected to the line at one time does not exceed 1440 volt-amperes, or have a current rating greater than 30 amperes at 51-150 volts or 20 amperes at 151 to 300 volts. |
| Roller Material: | 316 Grade Stainless Steel |
| Safety Contact Type: | IEC 60947-5-1 Double break Type Zb |
| Termination: | Clamp up to 2.5 sq. mm conductors |
| Rating: | Utilisation Category AC15 |
| Operational Rating: | AC15 A300 240V. 3A. / 120V. 6A. ac 24V. 2.5A dc |
| Thermal Current (Ith): | 10A |
| Rated Insulation Voltage (Ui): | 500V |
| Withstand Voltage (Uimp): | 2500V |
| Short Circuit Overload Protection: | Fuse Externally 10A. (FF) |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Mounting: | 4 x M5 |
| Torque settings: | Mounting M5 4.0 Nm Lid T20 Torx M4 1.5 Nm Terminals 1.0 Nm |
| Vibration resistance: | 10-500Hz 0.35mm |
| Shock Resistance: | 15g 11ms |
| Conduit Entries: | 4 x M20 or 4 x ½ “ NPT |
| Mechanical Reliability: | 150,000 operations at 100mA load |
| Switching range: | WARNING signal 10 to 18 degrees / STOP signal 15 to 35 degrees |
| Operating Torque range (adjustable): | Medium Duty 1.8Nm to 2.8Nm / Heavy Duty 3.0Nm to 5.0Nm |
| Maximum tilt angle (mounting angle): | 30 degrees |
| Maximum Deflection: | 65 degrees |
