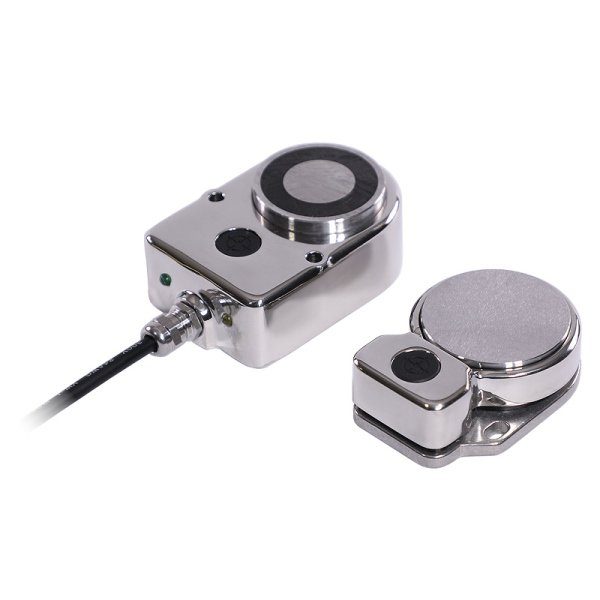

Idem 460003: MGL-2SS-U QC-M12 | Non-Contact Safety Switches
$1,070.00
“600N Magnetic RFID Switch for secure, efficient electrical control.”
| Attribute | Value |
|---|---|
| Approvals: | TUV, cULus |
| Coding Level according to EN ISO 14119: | M = Low / U = High |
| Technology: | Electro-Magnetic, RFID, Power to Lock |
| Housing Material: | 316 Grade Stainless Steel |
| Switching Distance: | Sao 1mm Close / Sar 10mm Open |
| Mttfd: | 1100a |
| UL Info: | Type 1 Enclosures. Maximum temperature 40ºC. Maximum output 24V.dc 200mA. Powered by Class 2 or equivalent. WARNING Hot surface – risk of burn if used at ambient temperature of +40C degrees. (Affix a warning label to the switch). |
| B10d: | Not mechanical parts implemented |
| Power Supply: | +24Vdc ± 10% (SELV / PELV) |
| Performance Level: | e (If both channels are used in combination with a SIL3/PLe control device) |
| Category: | Cat4 |
| Diagnostic Coverage DC: | 99% (high) |
| Switching frequency: | 1.0 Hz maximum |
| Contact Configuration: | 2 N/C + 1 N/O, Voltage-Free Outputs |
| Enclosure Protection: | IP67, IP69K |
| Holding Force: | (F1 max.) 600N |
| Dielectric Withstand: | 250V.ac |
| Insulation Resistance: | 100 Mohms |
| Approach speed: | 200mm/m to 1000mm/s |
| Temperature Range: | -25 … +40 °C |
| Cable Type: | PVC 8 core 6mm OD |
| Mounting Bolts: | 2 x M5 Tightening torque 1.0 Nm |
| Maximum Switched Current (outputs): | 200mA (Minimum internal resistance 8.5 Ohms) |
| Number of operating days per year: | dop = 365d |
| Number of operating hours per day: | hop = 24h |
