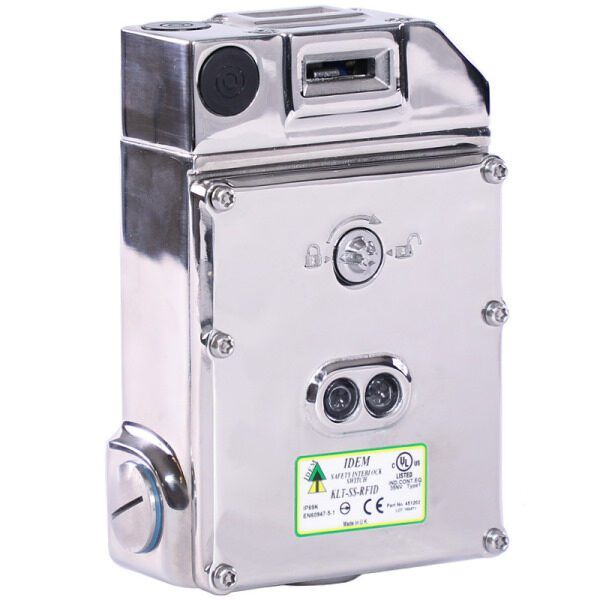

Idem 451301: KLT-SS-RFID Uniquely coded M20 24V Rear/Front Upper
$1,384.87
Explore the Idem 451301: KLT-SS-RFID Uniquely coded M20 24V Rear/Front Upper. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 451301 |
| Operating Temperature: | -25 … +40 °C |
| Approvals: | TUV, cULus |
| Technology: | RFID, Power to Unlock |
| Housing Material: | 316 Grade Stainless Steel |
| Enclosure Protection: | IP69K |
| Holding Force: | F1Max 3000N Fzh 2307N |
| Classification and Coding Level according to EN ISO 14119: | Type 4, High |
| Supply Voltage: | 24Vdc (+/- 10%) |
| Power Consumption: | R+ 1.2W (50mA Max.) / S+ 12W (500mA Max.) |
| Safety Circuits: | 24Vdc 200mA max. switching |
| Auxiliary Circuits (34 & 44): | 24Vdc 200mA max. Output feed |
| Rated Insulation Voltage: | 500VAC |
| Rated Impulse withstand: | 1000VAC |
| Actuator entry minimum radius: | 175mm |
| Mechanical Life Expectancy (b10d): | 2.5 x 106 cycles at 100mA load |
| Vibration: | IEC68-2-6, 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min |
| Assured locking distance: | 5mm |
| Sao (RFID): | 10mm |
| Sar (RFID): | 20mm |
| Max operating frequency: | 1Hz |
