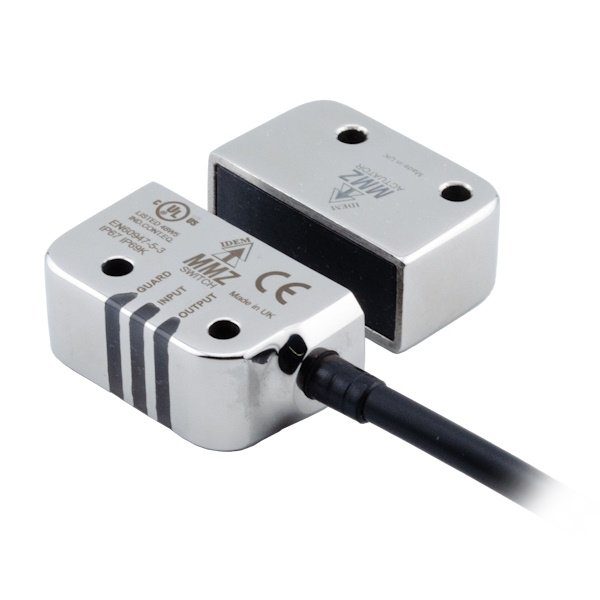

Idem 418002: MMZ-A 5m
$596.67
Explore the Idem 418002: MMZ-A 5m. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 418002 |
| Technology: | RFID |
| Housing Material: | 316 Grade Stainless Steel |
| Enclosure: | Type 1 |
| Response Time: | 20ms max. |
| Output Current: | 0.2 A |
| Approvals: | TUV (pending), cULus |
| Power Consumption: | 0.7 W |
| Coding Level according to EN ISO 14119: | A = Low / U = High |
| Switching Distance: | Sao 10mm / Sar 25mm |
| Outputs Max. Current: | 200mA |
| Outputs Min. Current: | 1 mA |
| Inputs Rated Voltage: | 24 Vdc |
| Inputs Rated Current: | 2 mA |
| Storage Temperature: | -25 … +80 °C |
| Tolerance to Misalignment: | 5mm in any Direction from 5mm Setting Gap |
| IP Rating: | IP67, IP69K |
| Rated Operating Voltage: | 24 Vdc -15% +10% (Use SELV/PELV) |
| Auxiliary Signaling Output Rated Voltage: | 24 Vdc |
| Auxiliary Signaling Output Max. Current: | 0.2 A |
| Response Time Guard Open: | 60ms max. |
| Response Time Inputs Off: | 20ms max. |
| Safety Channels: | 2 OSSD PNP Outputs |
| Auxiliary Indication: | 1 PNP Output |
| Indication: | 3 Bi-Colour LED’s (See Technical Drawing) |
| Connectivity: | 5m, 10m, M12 QC |
| Length: | 45mm |
| Width: | 26mm |
| Height: | 18mm |
| Ambient Temperature: | -25 … +55 °C |
| Output Rated Voltage: | 24 Vdc |
| Proof Test Interval T1: | 20a |
| Maximum Temperature: | +50 °C |
| Maximum Output: | 24V.dc 100mA |
