Idem 413103: BPF-U QC-M12 | Safety Switch Accessories
$375.00

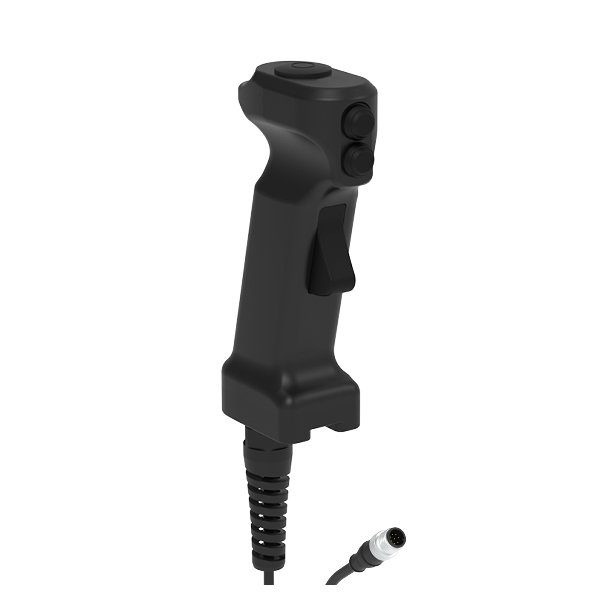

“User-friendly pendant switch with two pushbuttons, quick-connect M12.”
| Attribute | Value |
|---|---|
| Storage Temperature: | -25 to +60c |
| Certificates: | Pending |
| B10d: | 100,000 Cycles |
| Performance Level: | PLe / PLd when 2 circuits are connected to an external safety controller |
| Operating Temperature: | -10 to +60c (no freezing) |
| Electrical Rating: | 50V 125mA dc |
| Rated Insulation Voltage: | 250V. |
| Rated Output Voltage: | 24V.dc |
| Case Material: | Polyester Plastic |
| Rated Output Current: | 2A. (max) |
| Mechanical Durability: | 50,000 Cycles |
| Shock Resistance: | 11ms – 15g |
| Vibration Resistance: | Operating extremes 10 to 55 Hz, amplitude 0.5 mm |
| Actuating Frequency: | 1200 Cycles per hour (max) |
| Terminal Style: | Spring Terminal |
| Degree of Protection: | IP65 |
| IEC 60947-5-8: | Low-voltage switchgear and controlgear – Part 5-8 Control circuit devices and switching elements – Three-position enabling switches |
| ISO 13849-12023: | Safety of machinery — Safety-related parts of control systems |
