| Approvals: |
cULus |
| Technology: |

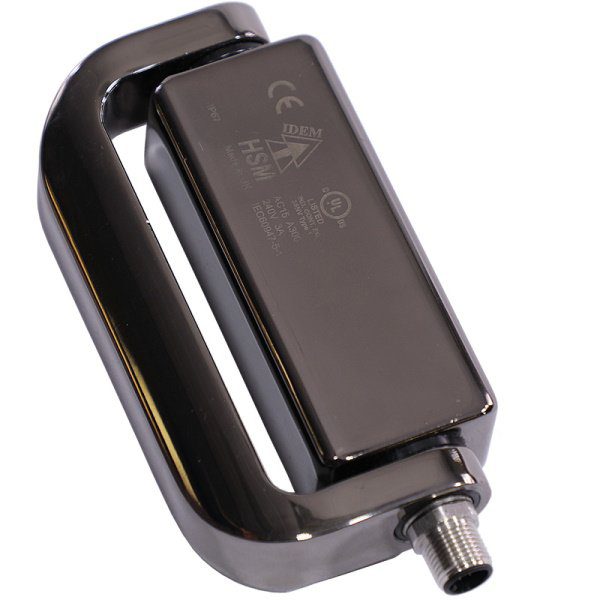

Hinge cam |
| Housing Material: |
Die-Cast Metal (Black Plated Mirror Finish) |
| ISO 13849-1: |
Up to PLe depending upon system architecture |
| UL Info: |
Electrical Rating Pilot Duty 30VAC, 45VA-450VA make / 45 VA break; 2.5A thermal 36VDC, 55VA make / break Maximum ambient temperature 50ºC (Connector versions 30V. AC/DC 2A. Max.) |
| Short Circuit Overload Protection: |
Fuse externally 10A (FF) |
| Contact Configuration: |
3 N/C + 1 N/O, or 2 N/C + 2 N/O |
| Overload Protection Fuse (fuse Externally): |
10A. (FF) |
| Thermal Current (lth): |
10A |
| Rated Insulation/Withstand Voltages: |
600VAC/2500VAC |
| Maximum Approach Withdrawal Speed: |
600mm/s |
| Enclosure Protection: |
IP67 |
| Operating Temperature: |
-25 … +80 °C |
| Vibration: |
IEC 68-2-6 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min |
| Fixing: |
7 x M5 |
| Pollution Degree: |
3 |
| Mechanical Reliability B10d: |
1.5 x 10 6 operations at 100mA load |
| Utilization Category: |
AC15 A300 3A |
| Actuator Rotation for Positive Opening: |
6 degrees 0.5Nm (Type Zb contacts) |
| EN62061: |
Up to SIL3 depending upon system architecture |
| Safety Data – Annual Usage: |
8 cycles per hour/24 hours per day/365 days MTTFd 356 years |
| Tightening Torque (all mounting bolts): |
4Nm |
| Mounting Position: |
Any |
| Altitude: |
Max. Altitude 2000m |
| Humidity: |
Relative Humidity 90% at 20 ºC (Non-Condensing) |
