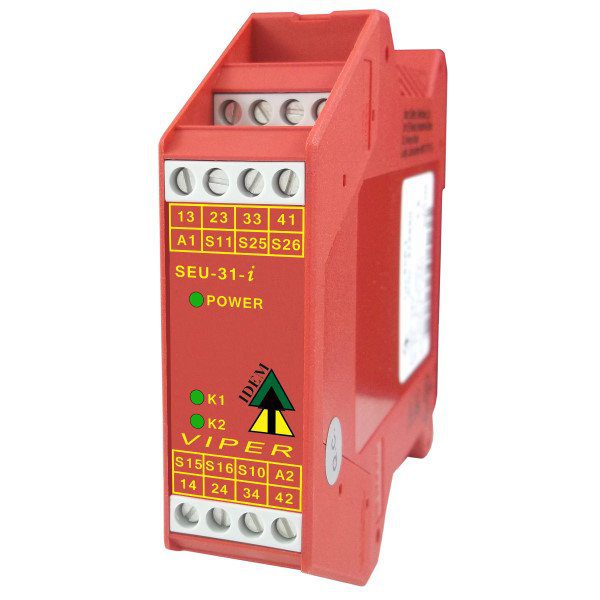

Idem 280007: SEU-31-i Screw Terminals | Safety Switch Accessories
“Enhances SCR-i safety relays functionality via Viper expansion unit.”
| Attribute | Value |
|---|---|
| UL Info: | Must be used in conjunction with SCR-i Safety Relay. |
| Temperature range: | -20C + 55C |
| Mounting: | Any Position |
| Operating voltage tolerance: | -15% – +10% |
| Rated Supply Frequency: | 50Hz – 60Hz |
| Rated Supply Current: | 60mA |
| Power consumption: | 24V AC/DC 2.5W |
| Rated output voltage: | S11 24V DC |
| Input Current: | S15, S16 100mA |
| Safety contact breaking Capacity: | AC 230V, 4A for AC-15 /DC 24V, 30W, 2A, DC-13 |
| Minimum contact load: | 10V 10mA |
| Contact material: | AgSnO2 |
| Contact Service Life: | 10 x 10 6 |
| Rated impulse withstand voltage: | 4kV (Creepage and Clearance Outputs -> Control Circuits 5.5mm) |
| Rated insulation voltage: | 250V |
| Degree of contamination: | 2 |
| Weight: | 0.15kg |
| Operating voltage: | 24V AC/DC |
| Degree of protection: | IP20 |
| Response Time: | 25ms |
| Release Time: | 25ms |
| Recovery Time: | Approx. 1s |
| Rated Output Voltage: | 250VAC |
| Max. Current Per Output: | 6A |
| Max. Total Current All Outputs: | 6A |
| Min. Contact Fuses: | 4A slow blow, 6A fast blow |
| Overvoltage Category: | III |
