| Approvals: |
cULus |
| Technology: |

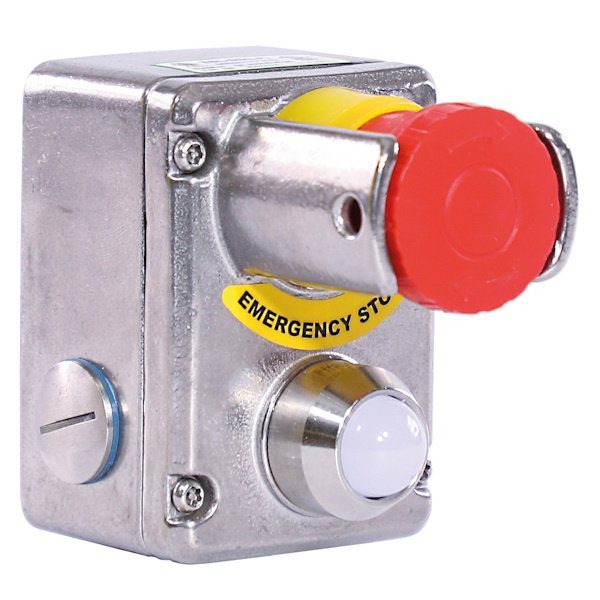

Emergency Stop, Twist-To-Release |
| Housing Material: |
316 Grade Stainless Steel |
| Indication: |
See data sheet or technical drawings tab |
| ISO 13849-1: |
up to PLe depending upon system architecture |
| UL Info: |
Where the risk assessment identifies that inadvertent operation of the E-Stop button may occur during use or breakage and loss of the button function is foreseen, it may be preferable to specify the protection shroud version. When required by local regulations, please affix the supplied yellow emergency stop sticker. Type 1 Enclosure Contact Blocks A300 230V/3A 120V/6A Wire range 16AWG – 12AWG Stranded Copper Conductors Terminal Torque 7lb/in (0.8Nm) 24V LED (if fitted) powered by LVLC or Class 2 only. |
| Safety Contact Type: |
IEC 60947-5-1 Double break Type Zb |
| Termination: |
Clamp up to 2.5 sq. mm conductors |
| Rating: |
Utilisation Category AC15 |
| Operational Rating: |
AC15 A300 240V. 3A /120V 6A. ac |
| Thermal Current (Ith): |
10A |
| Rated Insulation Voltage (Ui): |
500V |
| Withstand Voltage (Uimp): |
2500V |
| Short Circuit Overload Protection: |
Fuse Externally 10A. (FF) |
| Enclosure Protection: |
P67, IP69K (NEMA 6) |
| Operating Temperature: |
-25 … +80 °C |
| Mechanical Reliability B10d: |
1.5 x 10 6 operations at 100mA load |
| EN 62061: |
up to SIL3 depending upon system architecture |
| Safety Data – Annual Usage: |
8 cycles per hour / 24 hours per day / 365 days MTTFd 214 years |
| Button Material: |
UV Resistant Polyester |
| Shroud Material: |
316 Grade Stainless Steel |
