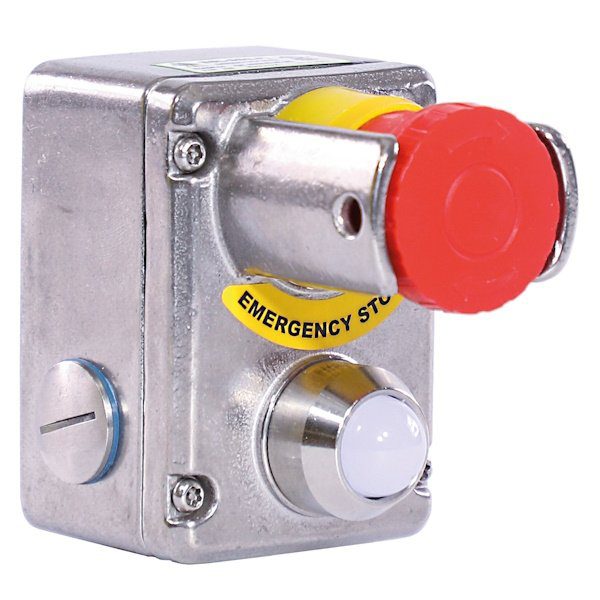

Idem 232023-AS: ESL-SSLP 2NC 2NO M20 LED steady red/green 24V
$481.34
Explore the Idem 232023-AS: ESL-SSLP 2NC 2NO M20 LED steady red/green 24V. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 232023-AS |
| Technology: | Emergency Stop, Twist-To-Release |
| Housing Material: | 316 Grade Stainless Steel |
| Enclosure Protection: | P67, IP69K (NEMA 6) |
| Operating Temperature: | -25 … +80 °C |
| Approvals: | cULus |
| Safety Contact Type: | IEC 60947-5-1 Double break Type Zb |
| Termination: | Clamp up to 2.5 sq. mm conductors |
| Rating: | Utilisation Category AC15 |
| Operational Rating: | AC15 A300 240V. 3A /120V 6A. ac |
| Thermal Current (Ith): | 10A |
| Rated Insulation Voltage (Ui): | 500V |
| Withstand Voltage (Uimp): | 2500V |
| Short Circuit Overload Protection: | Fuse Externally 10A. (FF) |
| Button Material: | UV Resistant Polyester |
| Indication: | See data sheet or technical drawings tab |
| Shroud Material: | 316 Grade Stainless Steel |
