Idem 232015: ESL-SSP-Ex 1NC 1NO 3M | Emergency Stop Solutions

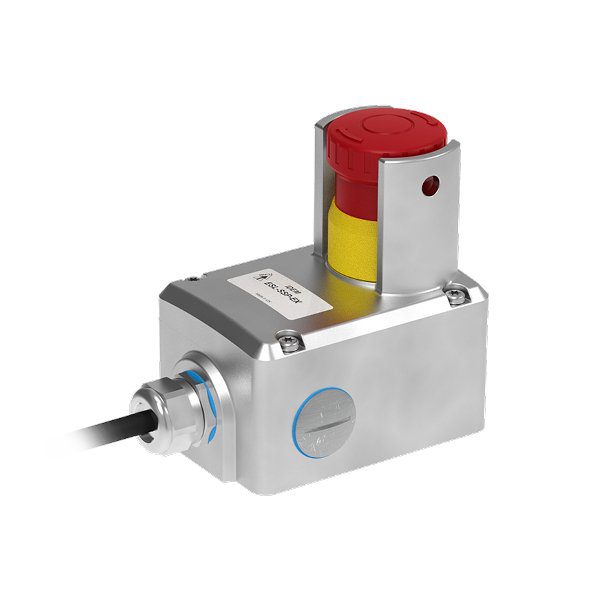

“Durable emergency stop button for hazardous areas with protective shroud.”
| Attribute | Value |
|---|---|
| Approvals: | IECEx, cULus on LS-Ex Internal Contact Block |
| Technology: | Emergency Stop, Twist-To-Release |
| Housing Material: | 316 Grade Stainless Steel |
| UL Info: | Comes with 3m of pre-wired cable (longer available on request). Where the risk assessment identifies that inadvertent operation of the E-Stop button may occur during use or breakage and loss of the button function is foreseen, it may be preferable to specify the protection shroud version. When required by local regulations, please affix the supplied yellow emergency stop sticker. ATEX Zones 1,21,2,22 II 2G Ex mb IIC T6 Gb II 2D Ex mb IIIC T80C Db |
| Enclosure Protection: | IP67, IP69K (NEMA 6) |
| Operating Temperature: | -25 … +80 °C |
| Switching frequency (LS-Ex): | 1.0 Hz maximum |
| Mechanical Life Expectancy (ls-ex): | 1,000,000 switches |
| Electrical Life Expectancy (ls-ex): | Tested to 1,000,000 cycles at 24V. 0.2A |
| Button Material: | UV Resistant Polyester |
