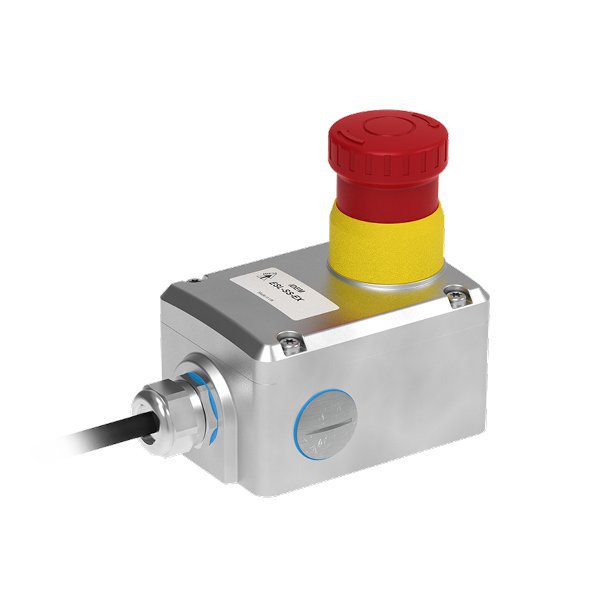

Idem 232007: ESL-SS-Ex 1NC 1NO 3M | Emergency Stop Solutions
“Robust emergency stop button for potentially hazardous environments.”
| Attribute | Value |
|---|---|
| Approvals: | IECEx, cULus on LS-Ex Internal Contact Block |
| Technology: | Emergency Stop, Twist-To-Release |
| Housing Material: | 316 Grade Stainless Steel |
| UL Info: | Comes with 3m of pre-wired cable (longer available on request). ATEX Zones 1,21,2,22 II 2G Ex mb IIC T6 Gb II 2D Ex mb IIIC T80C Db |
| Enclosure Protection: | IP67, IP69K (NEMA 6) |
| Operating Temperature: | -25 … +80 °C |
| Switching frequency (LS-Ex): | 1.0 Hz maximum |
| Mechanical Life Expectancy (ls-ex): | 1,000,000 switches |
| Electrical Life Expectancy (ls-ex): | Tested to 1,000,000 cycles at 24V. 0.2A |
| Button Material: | UV Resistant Polyester |
