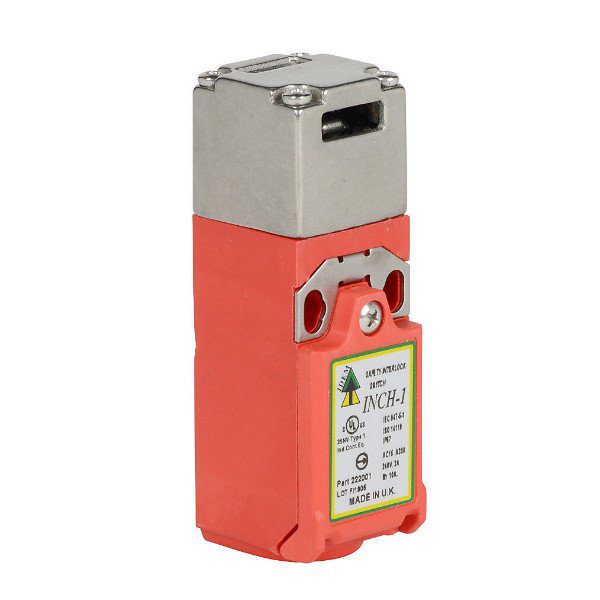

Idem 222001: INCH-1 2NC M16 | Solenoid Locking Switches
$88.00
“Compact, reliable safety switch ensuring secure electrical interlock operation.”
| Attribute | Value |
|---|---|
| Technology: | Tongue Interlock (Non Locking) |
| Housing Material: | Polyester |
| Certificates: | cULus |
| Enclosure: | Type 1 |
| Short Circuit Overload Protection: | Fuse externally 10A (FF) |
| Contact Configuration: | 2 NC or 1 NC + 1 NO |
| Overload Protection Fuse (fuse Externally): | 10A. (FF) |
| Thermal Current (lth): | 10A |
| Rated Insulation/Withstand Voltages: | 600VAC/2500VAC |
| Actuator Travel/Force for Positive Opening: | 6mm/12N |
| Actuator Entry Minimum Radius: | 150mm Standard 100mm Flexible |
| Maximum Approach Withdrawal Speed: | 600mm/s |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Vibration: | IEC 68-2-6 10-55Hz+1HzExcursion 0.35mm, 1 octave/min |
| Fixing: | 2 x M4 |
| Electrical Rating: | Pilot Duty A300 240V.ac 3A. 6,000 cycles |
| Maximum Ambient Temperature: | +40 °C |
| Pollution Degree: | 3 |
| Head Material: | Stainless Steel |
| Product Number | Variant Description |
|---|---|
| 222002 | INCH-1 2NC QC-M12 4way |
| 222002F | INCH-1 2NC QC-M12 4way flat actuator |
| 222001PF | INCH-1 2NC M16 PF actuator |
| 222002PF | INCH-1 2NC QC-M12 4way PF actuator |
| 222002A | INCH-1 2NC QC-M12 4way std actuator |
| 222001A | INCH-1 2NC M16 std actuator |
| 222001F | INCH-1 2NC M16 flat actuator |
