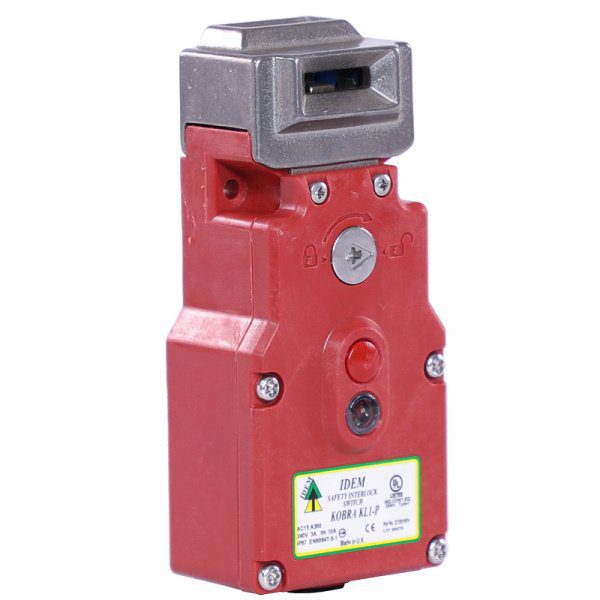

Idem 221003: KL1-P QC-M12 8way 24V LED only | Solenoid Locking Switches
$523.00
“Robust, secure 1400N guard locking safety switch, IDEM KL1-P.”
| Attribute | Value |
|---|---|
| Technology: | Power to Unlock |
| Housing Material: | Red Polyester |
| Approach Speed: | 200mm/m. to 1000mm/s |
| Certificates: | cULus |
| Enclosure: | Type 1 |
| Overload Protection Fuse (fuse Externally): | 10A. (FF) |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +40 °C |
| Vibration: | IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min |
| Fixing: | 4 x M5 |
| Holding Force: | F1Max 2000N. Fzh 1538N |
| Terminal Torque: | e 6 lb ins. (0.7Nm) |
| Rated Insulation Voltage: | 600VAC |
| Rated Impulse Withstand Volt: | 2500VAC |
| Conduit Entry: | M20 or 1/2 NPT |
| Head Material: | 316 Grade Stainless Steel |
| Travel for Positive Opening: | 10mm |
| Solenoid Voltage (by part number): | 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.) |
| Safety Contacts 11/12 21/22: | Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A |
| Auxiliary Contact 43/44: | 230V.ac/dc 0.5A. Maximum |
| Man. Actuation Frequency: | 2 cycle/sec |
| Actuator entry minimum radius: | 175mm Standard 100mm Flexible |
| Maximum temperature: | +40 °C |
| LED 2 (if fitted) Supply Voltage: | 24V dc +/- 10% |
| Auxiliary Contact 33/34: | 24V.ac/dc 0.5A. Maximum |
| Product Number | Variant Description |
|---|---|
| 221006A | KL1-P QC-M12 8way 110V LED only std actuator |
| 221009 | KL1-P QC-M12 8way 230V LED only |
| 221006 | KL1-P QC-M12 8way 110V LED only |
| 221006HFH | KL1-P QC-M12 8way 110V LED only HFH actuator |
| 221006HF | KL1-P QC-M12 8way 110V LED only HF actuator |
| 221003A | KL1-P QC-M12 8way 24V LED only std actuator |
| 221006F | KL1-P QC-M12 8way 110V LED only flat actuator |
| 221003HF | KL1-P QC-M12 8way 24V LED only HF actuator |
| 221003HFH | KL1-P QC-M12 8way 24V LED only HFH actuator |
| 221009HFH | KL1-P QC-M12 8way 230V LED only HFH actuator |
| 221009HF | KL1-P QC-M12 8way 2 230V LED only HF actuator |
| 221009F | KL1-P QC-M12 8way 230V LED only flat actuator |
| 221009A | KL1-P QC-M12 8way 230V LED only std actuator |
| 221003F | KL1-P QC-M12 8way 24V LED only flat actuator |
