221002 KL1-P 1/2"NPT 24V LED only
221001 KL1-P M20 24V LED only Idem 221001: KL1-P M20 24V LED only | Solenoid Locking Switches
221003 KL1-P QC-M12 8way 24V LED only Idem 221003: KL1-P QC-M12 8way 24V LED only | Solenoid Locking Switches

Idem 221002: KL1-P 1/2″NPT 24V LED only | Solenoid Locking Switches

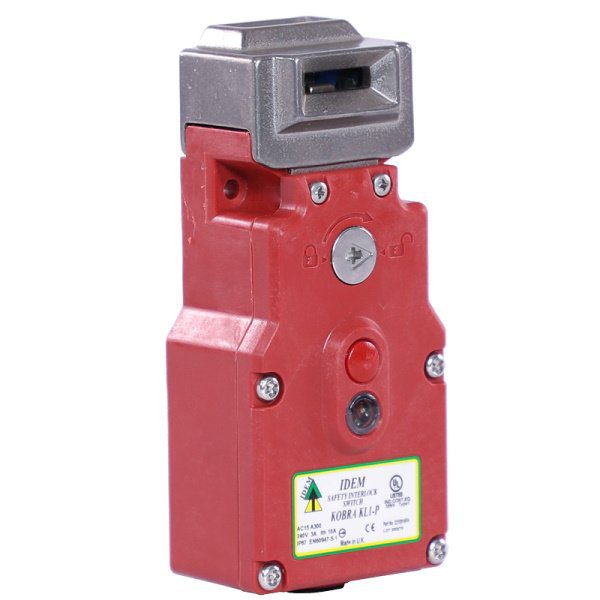

“1400N KL1-P Guard Locking Safety Switch for electrical security.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Power to Unlock
    Housing Material: Red Polyester
    Approach Speed: 200mm/m. to 1000mm/s
    Certificates: cULus
    Enclosure: Type 1
    Overload Protection Fuse (fuse Externally): 10A. (FF)
    Enclosure Protection: IP67
    Operating Temperature: -25 … +40 °C
    Vibration: IEC 68-2-6, 10-55Hz+1Hz, Excursion 0.35mm, 1 octave/min
    Fixing: 4 x M5
    Holding Force: F1Max 2000N. Fzh 1538N
    Terminal Torque: e 6 lb ins. (0.7Nm)
    Rated Insulation Voltage: 600VAC
    Rated Impulse Withstand Volt: 2500VAC
    Conduit Entry: M20 or 1/2 NPT
    Head Material: 316 Grade Stainless Steel
    Travel for Positive Opening: 10mm
    Solenoid Voltage (by part number): 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
    Safety Contacts 11/12 21/22: Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A
    Auxiliary Contact 43/44: 230V.ac/dc 0.5A. Maximum
    Man. Actuation Frequency: 2 cycle/sec
    Actuator entry minimum radius: 175mm Standard 100mm Flexible
    Maximum temperature: +40 °C
    LED 2 (if fitted) Supply Voltage: 24V dc +/- 10%
    Auxiliary Contact 33/34: 24V.ac/dc 0.5A. Maximum
    Product Number Variant Description
    221302A KL1-P 1/2″NPT 24V LED2 lock status std actuator
    221302HFH KL1-P 1/2″NPT 24V LED2 lock status HFH actuator
    221305A KL1-P 1/2″NPT 110V LED2 lock status std actuator
    221305 KL1-P 1/2″NPT 110V LED2 lock status
    221302 KL1-P 1/2″NPT 24V LED2 lock status
    221305F KL1-P 1/2″NPT 110V LED2 lock status flat actuator
    221302F KL1-P 1/2″NPT 24V LED2 lock status flat actuator
    221305HFH KL1-P 1/2″NPT 110V LED2 lock status HFH actuator
    221008 KL1-P 1/2″NPT 230V LED only
    221008A KL1-P 1/2″NPT 230V LED only std actuator
    221008F KL1-P 1/2″NPT 230V LED only flat actuator
    221008HF KL1-P 1/2″NPT 230V LED only HF actuator
    221008HFH KL1-P 1/2″NPT 230V LED only HFH actuator
    221002A KL1-P 1/2″NPT 24V LED only std actuator
    221002F KL1-P 1/2″NPT 24V LED only flat actuator
    221002HF KL1-P 1/2″NPT 24V LED only HF actuator
    221002HFH KL1-P 1/2″NPT 24V LED only HFH actuator
    221302HF KL1-P 1/2″NPT 24V LED2 lock status HF actuator
    221305HF KL1-P 1/2″NPT 110V LED2 lock status HF actuator
    221005 KL1-P 1/2″NPT 110V LED only
    221005F KL1-P 1/2″NPT 110V LED only flat actuator
    221005HF KL1-P 1/2″NPT 110V LED only HF actuator
    221005HFH KL1-P 1/2″NPT 110V LED only HFH actuator
    221308HFH KL1-P 1/2″NPT 230V LED2 lock status HFH actuator
    221308HF KL1-P 1/2″NPT 230V LED2 lock status HF actuator
    221308F KL1-P 1/2″NPT 230V LED2 lock status flat actuator
    221308A KL1-P 1/2″NPT 230V LED2 lock status std actuator
    221308 KL1-P 1/2″NPT 230V LED2 lock status
    221005A KL1-P 1/2″NPT 110V LED only std actuator
