220002 KL1-SS 1/2"NPT 24V LED only
220001 KL1-SS M20 24V LED only Idem 220001: KL1-SS M20 24V LED only | Solenoid Locking Switches
220003 KL1-SS QC-M12 8way 24V LED only Idem 220003: KL1-SS QC-M12 8way 24V LED only | Solenoid Locking Switches

Idem 220002: KL1-SS 1/2″NPT 24V LED only | Solenoid Locking Switches

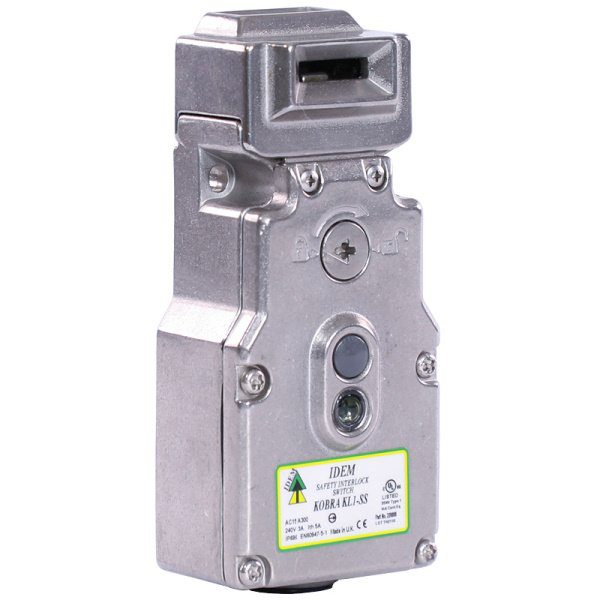

“Reliable 2000N IDEM Guard Locking Safety Switch (KL1-SS)”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Power to Unlock
    Housing Material: 316 Grade Stainless Steel
    Approach Speed: 200mm/m. to 1000mm/s
    Certificates: cULus
    Enclosure: Type 1
    Overload Protection Fuse (fuse Externally): 10A. (FF)
    Enclosure Protection: IP67, IP69K (QC version IP67 at the connector)
    Operating Temperature: -25 … +40 °C
    Vibration: IEC 68-2-6, 10-55Hz+1Hz,Excursion 0.35mm, 1 octave/min
    Fixing: 4 x M5
    Holding Force: F1Max 2000N. Fzh 1538N
    Terminal Torque: e 6 lb ins. (0.7Nm)
    Rated Insulation Voltage: 600VAC
    Rated Impulse Withstand Volt: 2500VAC
    Conduit Entry: M20 or 1/2 NPT
    Travel for Positive Opening: 10mm
    Solenoid Voltage (by part number): 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
    Safety Contacts 11/12 21/22: Utilization Category AC15 A300 3A.Thermal Current (Ith) 5A
    Auxiliary Contact 43/44: 230V.ac/dc 0.5A. Maximum
    Man. Actuation Frequency: 2 cycle/sec
    Actuator entry minimum radius: 175mm Standard 100mm Flexible
    Maximum temperature: +40 °C
    LED 2 (if fitted) Supply Voltage: 24V dc +/- 10%
    Auxiliary Contact 33/34: 24V.ac/dc 0.5A. Maximum
    Product Number Variant Description
    220005HFH KL1-SS 1/2″NPT 110V LED only HFH actuator
    220305A KL1-SS 1/2″NPT 110V LED2 lock status std actuator
    220305 KL1-SS 1/2″NPT 110V LED2 lock status
    220302HFH KL1-SS 1/2″NPT 24V LED2 lock status HFH actuator
    220302HF KL1-SS 1/2″NPT 24V LED2 lock status HF actuator
    220008F KL1-SS 1/2″NPT 230V LED only flat actuator
    220302A KL1-SS 1/2″NPT 24V LED2 lock status std actuator
    220302 KL1-SS 1/2″NPT 24V LED2 lock status
    220008HFH KL1-SS 1/2″NPT 230V LED only HFH actuator
    220008HF KL1-SS 1/2″NPT 230V LED only HF actuator
    220005HF KL1-SS 1/2″NPT 110V LED only HF actuator
    220302F KL1-SS 1/2″NPT 24V LED2 lock status flat actuator
    220005F KL1-SS 1/2″NPT 110V LED only flat actuator
    220008A KL1-SS 1/2″NPT 230V LED only std actuator
    220005 KL1-SS 1/2″NPT 110V LED only
    220305F KL1-SS 1/2″NPT 110V LED2 lock status flat actuator
    220305HF KL1-SS 1/2″NPT 110V LED2 lock status HF actuator
    220305HFH KL1-SS 1/2″NPT 110V LED2 lock status HFH actuator
    220308 KL1-SS 1/2″NPT 230V LED2 lock status
    220308A KL1-SS 1/2″NPT 230V LED2 lock status std actuator
    220308F KL1-SS 1/2″NPT 230V LED2 lock status flat actuator
    220308HF KL1-SS 1/2″NPT 230V LED2 lock status HF actuator
    220002HFH KL1-SS 1/2″NPT 24V LED only HFH actuator
    220002HF KL1-SS 1/2″NPT 24V LED only HF actuator
    220002F KL1-SS 1/2″NPT 24V LED only flat actuator
    220002A KL1-SS 1/2″NPT 24V LED only std actuator
    220308HFH KL1-SS 1/2″NPT 230V LED2 lock status HFH actuator
    220005A KL1-SS 1/2″NPT 110V LED only std actuator
    220008 KL1-SS 1/2″NPT 230V LED only
