Name: Idem 220001: KL1-SS M20 24V LED only
Brand: Venus Automation
SKU: 220001
Availability: InStock
Rating: 5 (1 reviews)

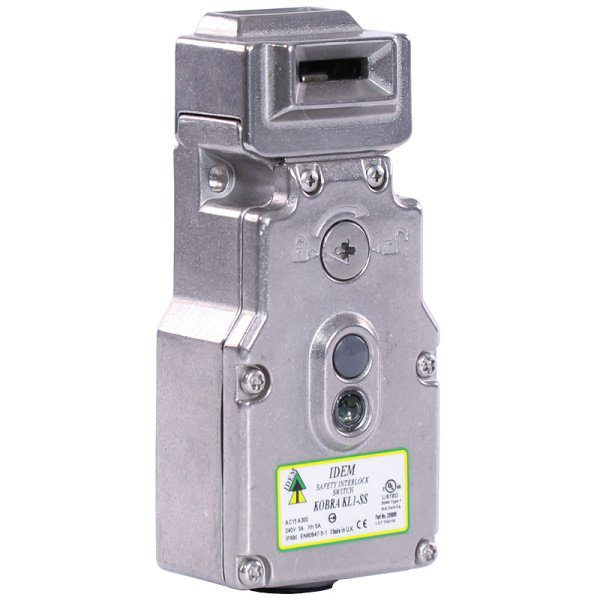

Idem 220001: KL1-SS M20 24V LED only | Solenoid Locking Switches

“Robust IDEM Guard Locking Safety Switch, supporting up to 2000N force.”

Specifications Compliance & Variations

Attribute	Value
Technology:	Power to Unlock
Housing Material:	316 Grade Stainless Steel
Approach Speed:	200mm/m. to 1000mm/s
Certificates:	cULus
Enclosure:	Type 1
Overload Protection Fuse (fuse Externally):	10A. (FF)
Enclosure Protection:	IP67, IP69K (QC version IP67 at the connector)
Operating Temperature:	-25 … +40 °C
Vibration:	IEC 68-2-6, 10-55Hz+1Hz,Excursion 0.35mm, 1 octave/min
Fixing:	4 x M5
Holding Force:	F1Max 2000N. Fzh 1538N
Terminal Torque:	e 6 lb ins. (0.7Nm)
Rated Insulation Voltage:	600VAC
Rated Impulse Withstand Volt:	2500VAC
Conduit Entry:	M20 or 1/2 NPT
Travel for Positive Opening:	10mm
Solenoid Voltage (by part number):	24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
Safety Contacts 11/12 21/22:	Utilization Category AC15 A300 3A.Thermal Current (Ith) 5A
Auxiliary Contact 43/44:	230V.ac/dc 0.5A. Maximum
Man. Actuation Frequency:	2 cycle/sec
Actuator entry minimum radius:	175mm Standard 100mm Flexible
Maximum temperature:	+40 °C
LED 2 (if fitted) Supply Voltage:	24V dc +/- 10%
Auxiliary Contact 33/34:	24V.ac/dc 0.5A. Maximum

Product Number	Variant Description
220304	KL1-SS M20 110V LED2 lock status
220301	KL1-SS M20 24V LED2 lock status
220301HF	KL1-SS M20 24V LED2 lock status HF actuator
220301HFH	KL1-SS M20 24V LED2 lock status HFH actuator
220301HFH-10M	KL1-SS M20 24V LED2 lock status HFH actuator (Pre-Wired 10m)
220304A	KL1-SS M20 110V LED2 lock status std actuator
220304F	KL1-SS M20 110V LED2 lock status flat actuator
220304HF	KL1-SS M20 110V LED2 lock status HF actuator
220004A	KL1-SS M20 110V LED only std actuator
220004F	KL1-SS M20 110V LED only flat actuator
220004	KL1-SS M20 110V LED only
220004HF	KL1-SS M20 110V LED only HF actuator
220004HFH	KL1-SS M20 110V LED only HFH actuator
220301F	KL1-SS M20 24V LED2 lock status flat actuator
220307	KL1-SS M20 230V LED2 lock status
220307A	KL1-SS M20 230V LED2 lock status std actuator
220304HFH	KL1-SS M20 110V LED2 lock status HFH actuator
220307HF	KL1-SS M20 230V LED2 lock status HF actuator
220307HFH	KL1-SS M20 230V lock status LED2 HFH actuator
220007HFH	KL1-SS M20 230V LED only HFH actuator
220007HF	KL1-SS M20 230V LED only HF actuator
220007F	KL1-SS M20 230V LED only flat actuator
220001A	KL1-SS M20 24V LED only std actuator
220307F	KL1-SS M20 230V LED2 lock status flat actuator
220001HF	KL1-SS M20 24V LED only HF actuator
220001F	KL1-SS M20 24V LED only flat actuator
220007A	KL1-SS M20 230V LED only std actuator
220007	KL1-SS M20 230V LED only
220001HFH	KL1-SS M20 24V LED only HFH actuator
220301A	KL1-SS M20 24V LED2 lock status std actuator
