Idem 215304HF: KL3-SS-RR M20 110V no release HF actuator
$1,438.02

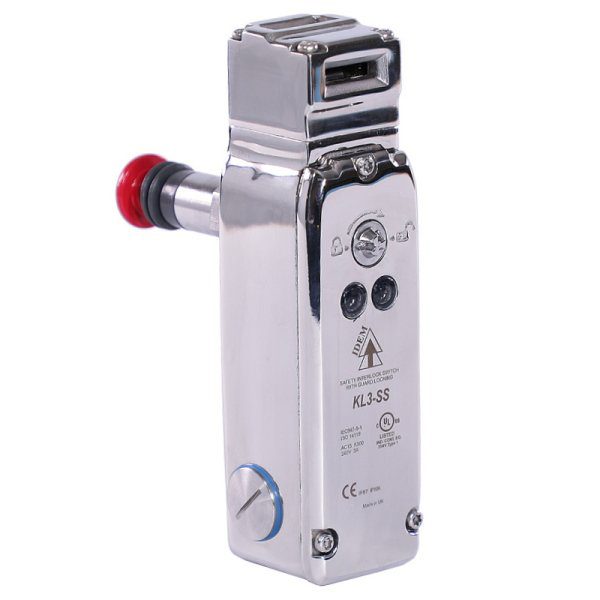

The KL3-SS guard locking safety interlock features a slimline, mirror polished 316 stainless steel body and a holding force of up to 3000N to keep medium to large guard doors closed until hazards have been removed. A non-latching manual escape release is provided to enable quick release of the switch lock in case of emergency.
| Attribute | Value |
|---|---|
| Product Code: | 215304HF |
| Prices To Upload: | 1438.0151999999998 |
| Certificates: | cULus |
| Technology: | Power to Unlock |
| Housing Material: | 316 Grade Stainless Steel |
| Approach Speed: | 200mm/m. to 1000mm/s. |
| Solenoid Voltage (by part number): | 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.) |
| LED 2 Supply Voltage: | 24V dc +/- 10% |
| Safety Contacts 11/12 21/22: | Utilization Category AC15 A300 3A.Thermal Current (Ith) 5A |
| Auxiliary Contact 33/34 (selectable with LED2): | 24V.ac/dc 0.5A. maximum. |
| Auxiliary Contact 43/44: | 230V.ac/dc 0.5A. maximum. |
| Rated Insulation Voltage: | 600VAC |
| Rated Impulse Withstand Volt: | 2500VAC |
| Travel for Positive Opening: | 10mm |
| Man. Actuation Frequency: | 2 cycle/sec |
| Actuator entry minimum radius: | 175mm Standard 100mm Flexible |
| Enclosure Protection: | IP67, IP69K |
| Operating Temperature: | -25 … +40 °C |
| Holding Force: | F1Max 3000N. Fzh 2307N. |
| Vibration: | IEC 68-2-6, 10-55Hz+1Hz,Excursion 0.35mm, 1 octave/min |
| Conduit Entry: | M20 or 1/2 NPT |
| Fixing: | 4 x M5 |
| Enclosure: | Type 1 |
| Maximum temperature: | +40 °C |
| Terminal Torque: | e 6 lb ins. (0.7Nm) |
| Overload Protection Fuse (fuse Externally: | 10A. (FF). |
